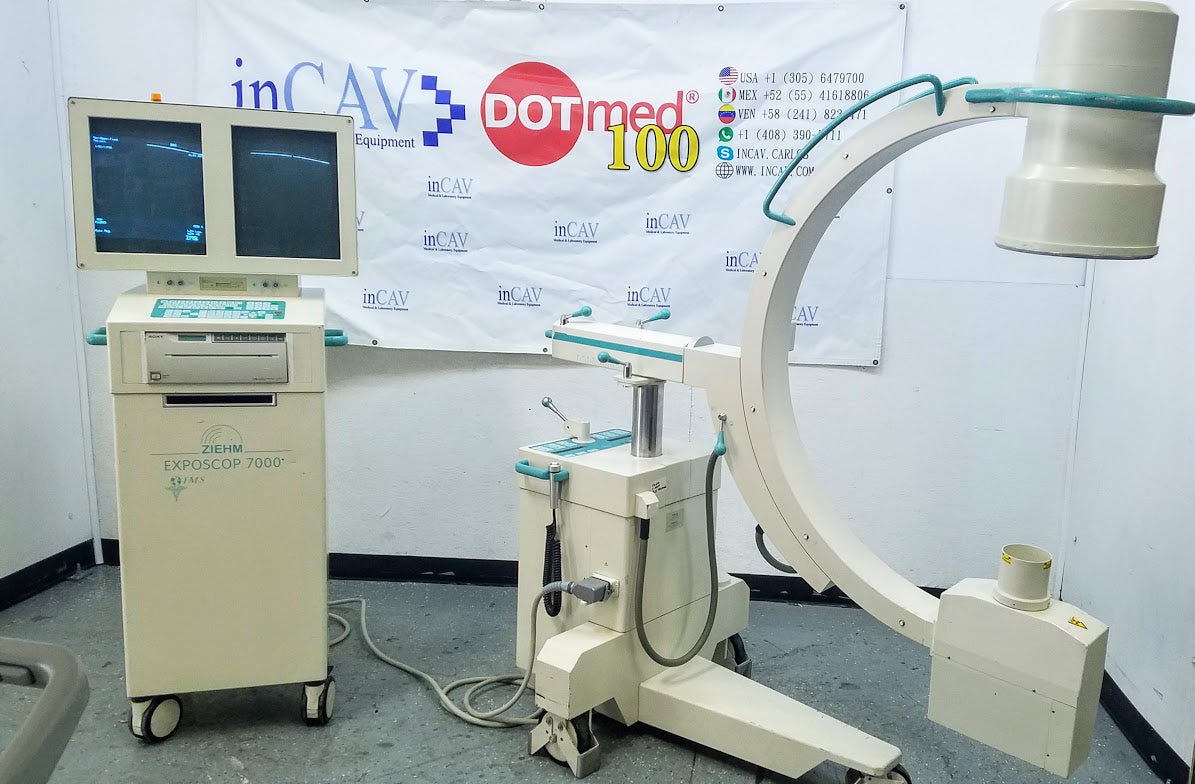

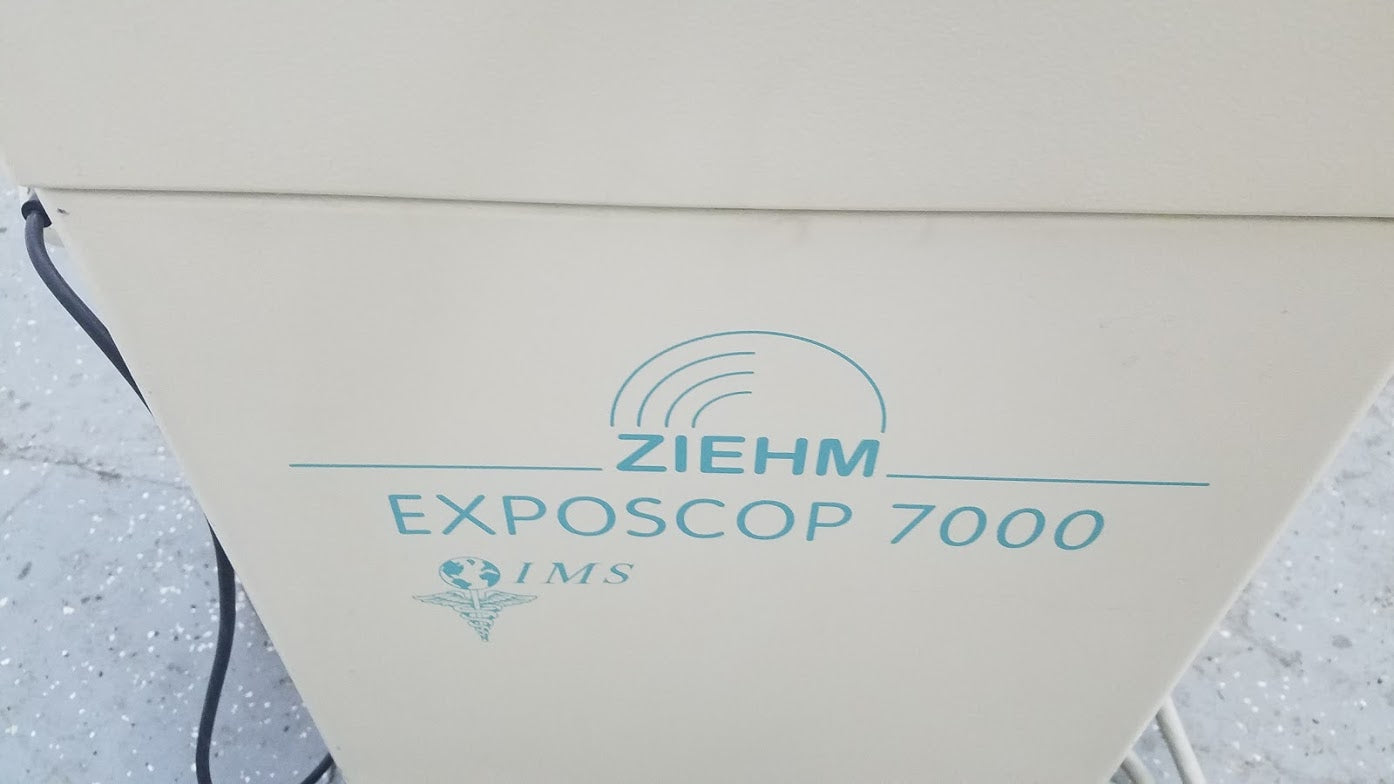

Ziehm EXPOSCOP 7000 Orthopedic C-Arm

Ziehm EXPOSCOP 7000  Orthopedic C-Arm

Condition EXCELLENT!!

Ziehm Exposcop 7000 Features

The Ziehm Exposcop 7000 C-Arm is an extra level c-arm that is idea for Chiros that are converting to pain management. The Ziehm Exposcop is the first c-arm module that uses CCD cameras. It can be used for imaging of the extremities, chest, head, spine, hip along with much more.

  • High frequency x-ray generator 20,000 Hz
  • 9/6" dual field image intensifier
  • Body region and application specific keys - Extremities, Chest, Head, Spine, Hip, Metal, Soft tissue, 1/2 dose
  • 17” Monitor (anti-glare) 120 Hz
  • 5” Slave Control Monitor on back of TV monitor (for technician)
  • Black and White Video Graphic Paper Printer (Optional)

.



Ziehm Exposcop 7000 Specifications



Dimensions of the C-Arm

    • Source/image receptor distance: 97 cm
    • Vertical free space (generator/i.i.): 75 cm
    • C-arm depth: 68 cm
    • Orbital rotation: 115° / 135°
    • Angulation: ± 225°
    • Swiveling (panning): 0°
Horizontal movement: o cm
  • Vertical movement: 23 cm
  • Weight

    • C-Arm Stand Weight:
      • Ziehm 7000 Plus: Approx. 264 kg ( 23 cm i.i.)
      • Ziehm 7000 Plus ( with flat screen monitor): Approx. 294 kg ( 23 cm i.i.)
    • Monitor Cart
      • Ziehm 7000 Plus with 23” flat screen monitor: Approx. 148 kg
      • Ziehm 7000 Plus with 18” flat-screen Monitor: Aprox. 153 kg

    Power

    • Fluoroscopy: 40–110 kV / 0.1–6 mA - 40–110 kV / 0.1–6 mA
    • Direct radiography: 40–110 kV / 18–20 mA
    • Operating Frequency: 20 kHz

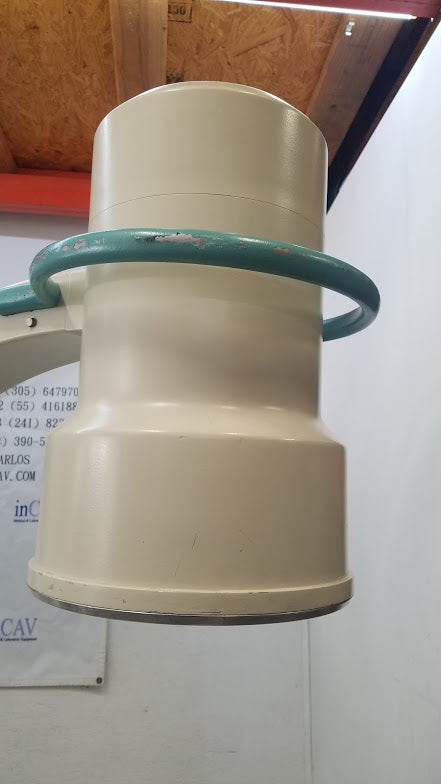

    Image Intensifier

    • Scintillator: Cesium iodide
    • Nominal Sizes: 31 / 23 / (15) cm or 23 / 15 / (10) cm or 15 / 10 cm ( 23 / 15 / (10)cm for the Compact Litho Version)
    • Anti- scatter grid: Pb 8/40

    Environmental Conditions

    • Temperature during storage: –10°C to +60°C
    • Relative air humidity in storage: 95%
    • Temperature during operation: +10°C to +35°C
    • Relative air Humidity during operation: 75%

    Other Features

    • Iris and slot collimator
    • Fluoroscopic operation from 40 kV to 110 kV at 0.2 - 6 mA and pulse modes
    • Radiographic operation from 40 kV to 110 kV at 20 mA
    • 8 mA mode for special procedure
    • Image rotation
    • 17” Monitor (anti-glare) 120 Hz
    • 5” Slave Control Monitor on back of TV monitor (for technician)
    • Frame image storage
    • Last image hold
    • Integrated cable pushers allow for easy maneuverability and positioning
    • Large Patient Diameter Key





      • $ 7,990.00
      • $ 12,990.00
