  • Viasys Bird Avian Ventilator
VIASYS

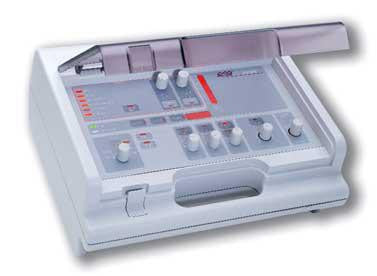

Viasys Bird Avian Transport Ventilator

Viasys Bird Avian Transport Ventilator

Condition: Pre-owned

SPECIFICATIONS

Electrical
External DC Power External Input Voltage 11 to 30 VDC
(Positive or Negative Polarity)
Internal Battery 6 Volt Rechargeable Sealed Lead Acid
(11 Hours rain. operation on full charge)
External Power Adapter 100 - 125 VAC, 50 - 400 HZ
(Switch selectable input) 220 - 250 VAC, 50 - 400 HZ

Alarms
High Peak Pressure I to 100 cmH20
Low Peak Pressure OFF, 2 to 50 cmH20
I:E Ratio (inverse) Audio/Visual
Apnea Audio/Visual (automatic - 20 sec.)
External Power - Low &Fail Audio/Visual
Disconnect Audio / Visual
PEEP Not Set Audio/Visual
Battery Low/Fail Audio/Visual
Alarm Silence/Reset Variable Duration (depending on the alarm) Single Touch Button



Controls
Modes OFF, Control, Assist-Control, SIMV, CPAP
and CAL
Breath Rate 0 to 150 bpm
Flow 5 to 100 lpm
Inspiratory Time 0.1 to 3.0 seconds
Tidal Volume 50 to 2000 ml
Assist Sensitivity -2 to -8 cmH20
Manual Breath Touch button activated
PEEP/CPAP 0 to 20 cmH20
(with removable PEEP valve)
Sigh On/Off I sigh/100 breaths or 7 minutes;
1.5 X Inspiratory Time (3.0 sec. max.) or Tidal
Volume (2,000 ml max.) setting; 1.5 X High
Pressure setting (100 cmH20 max)
Manual (PEEP) Reference Set 0 to 20 cmH20
Pressure Relief 10 to 100 cmH20



Monitors/Indicators
Green LED Power On
Yellow LED External Power
Red LED Peep Not Set
Apnea
Battery (Low/Fail)
External Power Failure
Vent Inoperative
Disconnect
4 Digit 7 Segment LED Display (M.A.P.) Mean Airway
Pressure 0 t.o 100 cmH20
(P.I.P.) Peak Inspiratory
Pressure 0 to 100 cmH20
(Paw) Airway Pressure 0 to 100 crnH20
Low Peak Pressure, Off, 2 to 50 cmH20
High Peak Pressure I to 100 cmH20
Inspiratory Time 0.1 to 3.0 seconds
Tidal Volume 50 to 2000 ml
Breath Rate 0 to 150 bpm
Flow 5 to 100 LPM
LED Bar Graph Airway Pressure -10 to 100 cmH20
