  • Sechrist Iv 100B Iv 200 Ventilator
SECHRIST

Sechrist Iv 100B Iv 200 Ventilator

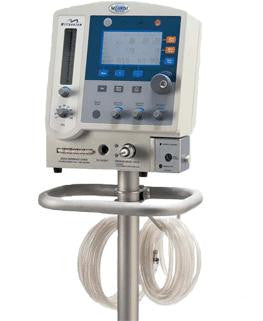

Sechrist Millennium Ventilator

Condition: Pre-owned



TECHNICAL SPECIFICATIONS

Recommended Applications
Neonatal, infant& pediatric patients < 50 Kg

Flow
2-32 lpm; flush 40 lpm

Modes of Operation
AC, SIMV/IMV, CPAP, CPAP with backup ventilation,
Standby

Inspiratory Time
0.1 to 3.0 seconds

I : E Ratio
Normal Range:
1:1.0 to 1:10 (sens. off)
1:1.0 to 1:99 (sens. on)
Inverse Range:1.0:1 to 4.0:1

Rate
2 to 150 breaths per minute

Expiratory Pressure
0 to 20 cmH2O

Inspiratory Pressure
5 to 70 cmH2O

Waveform
Tappered to square

Manual Breath
Electronically controlled, based upon the inspiratory
pressure, inspiratory time and waveform control setting

Alarms
High Inspiratory Pressure
Low/Prolonged Inspiratory Pressure
Low PEEP/Baseline Pressure
Apnea
High Respiratory Rate
Loss/Low Electrical Power
System Error/Vent Inop
Loss of Inlet Gas


Alarm Delay Time

3 to 15 seconds

Alam Mute
30 Seconds

Safety Pressure Relief Valve
15 to 85 cmH20

Indicators
Inspiratory Pressure
PEEP/Baseline Pressure
Calculated I:E Ratio
Mean Airway Pressure
Proximal Airway Pressure Bar Graph
Measured Respiratory Rate

Dimensions
13.5"(34.29cm)H
11"(27.94cm)W
9.5"(24.13cm)D

Weight
21 lbs (9.5kg)

Gas Consumption
14 lpm above the continuous flow setting

Power Requirements
110 to 120 VAC, 50/60 Hz
220 to 240 VAC, 50/60 Hz
100 VAC, 50/60 Hz
