PHILIPS

Philips Respironics Vision Ventilator

Philips Respironics Vision Ventilator

Condition:      Pre-owned - USED, Working
Accesories:     NO Accesories Included, please see pictures
Certifications: FDA, CE


 SOLD OUT

Product Description

Accurate, Reliable, and Easily Upgradeable Ventilatory Support System

FEATURES

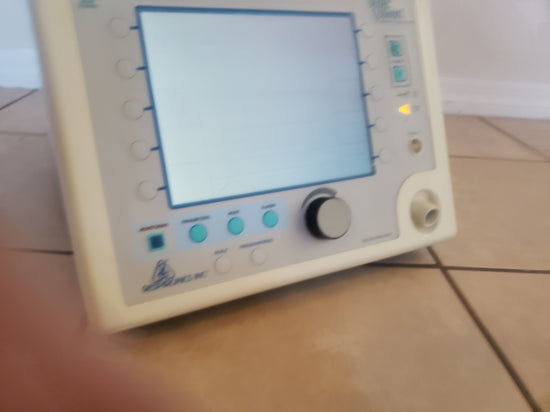

    • Integrated Display Screen
      Integrated Display Screen displays easy-to-read real time graphics in waveform or bar scale format, providing the following measured and calculated numerical values to assist with ventilator management:

        • IPAP
        • Total Breath Rate
        • Exhaled Minute Ventilation
        • % Patient Triggered Breaths
        • Exhaled Tidal Volume
        • EPAP
        • Ti/Tot
        • Peak Inspiratory Pressure
        • Patient or Total Leak
    • Modes
      • CPAP and S/T are available for maintaining airway patency and providing pressure support ventilation.
      • PAV * /T (Proportional Assist Ventilation/Timed mode) helps to promote improved patient comfort and enhanced patient/ventilator synchrony through independent adjustment of Volume and Flow assist based on the patients disease state.

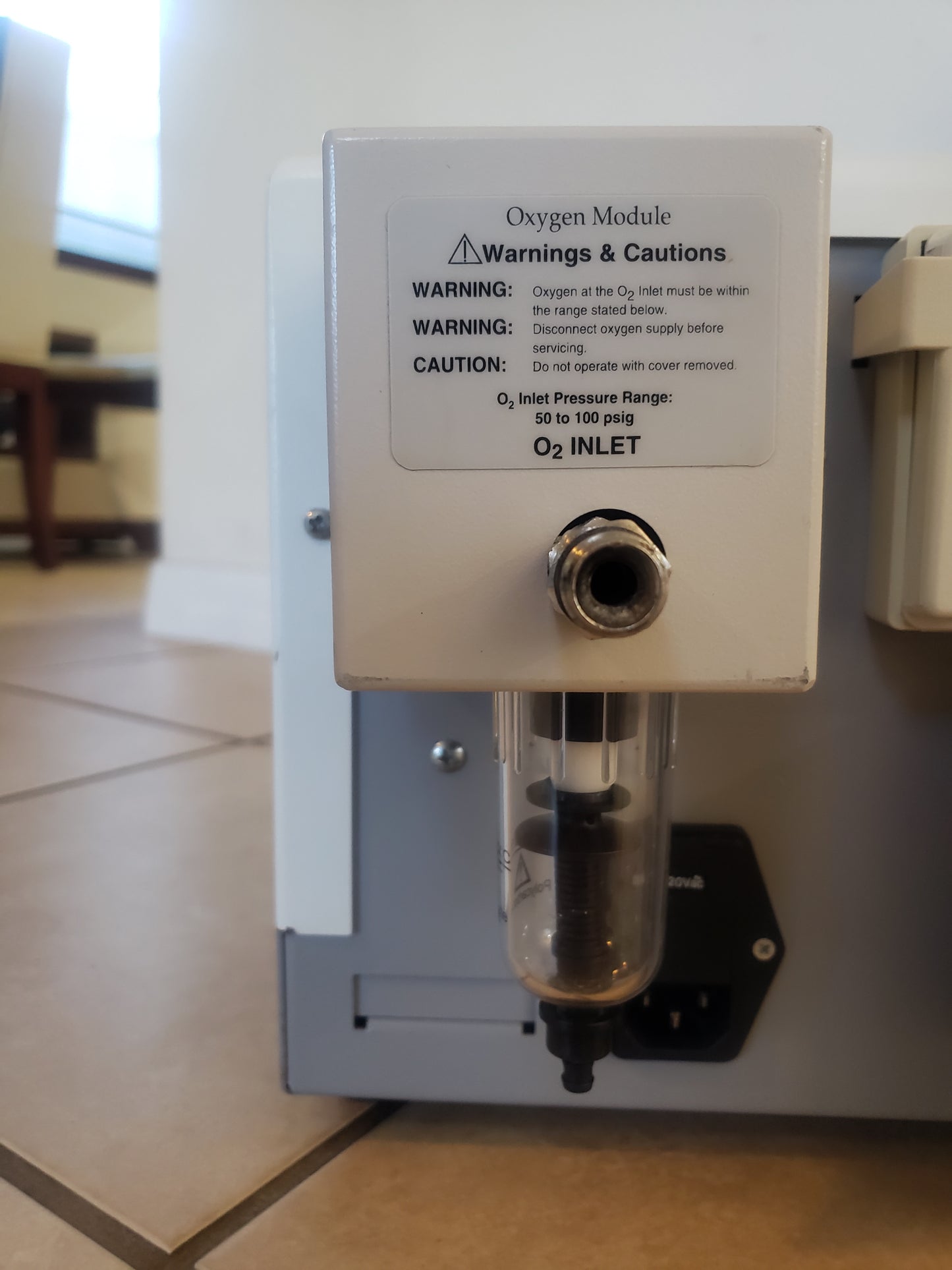

      • Oxygen Control up to 100%
        Allows you to blend oxygen within the unit in concentrations ranging between 21-100% without auxiliary oxygen tubing attached to the mask.

      • Pressure Regulation at the Mask
        Pressure regulation at the mask allows you to regulate pressure therapy to assure delivery where it counts (not inside the machine), and automatically adjusts for variations.

      • Upgradeable Design Provides Flexibility
        Upgradeable features provide flexibility in your purchase decision, now and in the future. The Vision System gives you the ability to upgrade instead of buying a new machine for each medical revolution.

    • BiPAP® Auto-Trak SensitivityTM
      Optimum Response Automatically. The innovative development of Auto-Trak SensitivityTM enables the BiPAP Vision System to automatically respond to changing breathing patterns and circuit leaks by identifying leaks and adjusting variable sensitivity thresholds for optimum response with every breath.



    SPECIFICATIONS

    Control Ranges and Increments: Parameters

    Parameters Control Range Control Increment
    IPAP 4 to 40 cm H2O 1 cm H2O
    EPAP 4 to 20 cm H2O 1 cm H2O
    CPAP 4 to 20 cm H2O 1 cm H2O
    Rate 4 to 40 BPM 1 BPM
    Timed Inspiration 0.5 to 3.0 sec 0.1 sec
    IPAP >Rise Time 0.05 to 0.40 sec 4 set points: .05, .1, .2, .4 sec
    Oxygen Concentration (%O2)* 21 to 100% 4% from 21 to 25%
    5% from 25 to 100%

    *With optional Oxygen Module

    Control Ranges and Increments: Alarms

    Alarm Control Range Control Increment
    High Pressure 5 to 50 cm H2O 1 cm H2O
    Low Pressure Disabled;0 to 40 cm H2O 1 cm H2O
    Low Pressure Delay 0 to 60 sec 1 sec
    Apnea Disabled; 20 to 40 sec 4 set points: Disabled, 20, 30, 40 sec
    Low Minute Ventilation Disabled; 1 to 99 L/min 1 L/min
    High Rate 4 to 120 BPM 1 BPM
    Low Rate 4 to 120 BPM 1 BPM

    Display Ranges and Increments

    Parameters Control Range Control Increment
    IPAP 0 to 50 cm H2O 1 cm H2O
    EPAP 0 to 50 cm H2O 1 cm H2O
    CPAP 0 to 50 cm H2O 1 cm H2O
    Rate 0 to 150 BPM 1 BPM
    Exhaled Tidal Volume (VT) 0 to 4000 ml 1 ml
    Minute Ventilation (Min Vent) 0 to 99 L/min 1 L/min
    Total Leak (Tot Leak) 0 to 300 L/min 1 L/min
    Patient Leak(Pt. Leak) 0 to 300 L/min 1 L/min
    Peak Inspiratory Pressure (PIP) 0 to 50 cm H2O 1 cm H2O
    Percent of Patient Triggered Breaths (Pt. Trig) 0 to 100% 1%
    Ti/Ttot 0 to 100% 1%
