Siemens ARTIS Q.zen Biplane Angiography System – 2016

Advanced Interventional X-Ray System for Cath Lab, Angio Lab & Hybrid Procedures

Condition: Refurbished
Year: 2016
Configuration: Biplane Angiography System
X-Ray Tubes: Updated in 2022 and 2024

Product Overview

The Siemens ARTIS Q.zen Biplane is a high-performance interventional X-ray and angiography system designed for advanced procedures in cardiac catheterization labs, angio labs, interventional radiology suites, neurovascular centers, and hybrid operating rooms.

The biplane configuration provides two imaging planes, allowing simultaneous imaging from different angles. This is particularly valuable for complex cardiovascular, neurovascular, and interventional procedures where precise visualization and efficient workflow are critical.

The ARTIS Q.zen platform features Siemens' advanced X-ray generation and detector technology, including ultra-low-dose imaging capabilities and high sensitivity for fluoroscopy-guided interventions. Siemens specifically positions the ARTIS Q.zen Biplane for angiography, cardiology, surgery, and complex image-guided interventions.

This 2016 system has the added benefit of updated X-ray tubes from 2022 and 2024, providing significant value for facilities seeking a premium biplane angiography platform.

Key Features

• Siemens ARTIS Q.zen Biplane interventional imaging system
• Dual-plane angiography configuration
• Ideal for Cath Labs and Angio Labs
• Advanced fluoroscopy and digital acquisition
• Ultra-low-dose imaging technology
• High-sensitivity crystalline silicon detector technology
• GIGALIX high-performance X-ray tube technology
• Advanced image processing and dose management
• Excellent patient access and broad anatomical coverage
• Supports complex cardiovascular and neurovascular procedures
• Suitable for hybrid operating rooms
• Advanced 2D and 3D imaging capabilities depending on installed software configuration
• Updated X-ray tubes:
  • One tube: 2022
  • One tube: 2024

Advanced Biplane Imaging

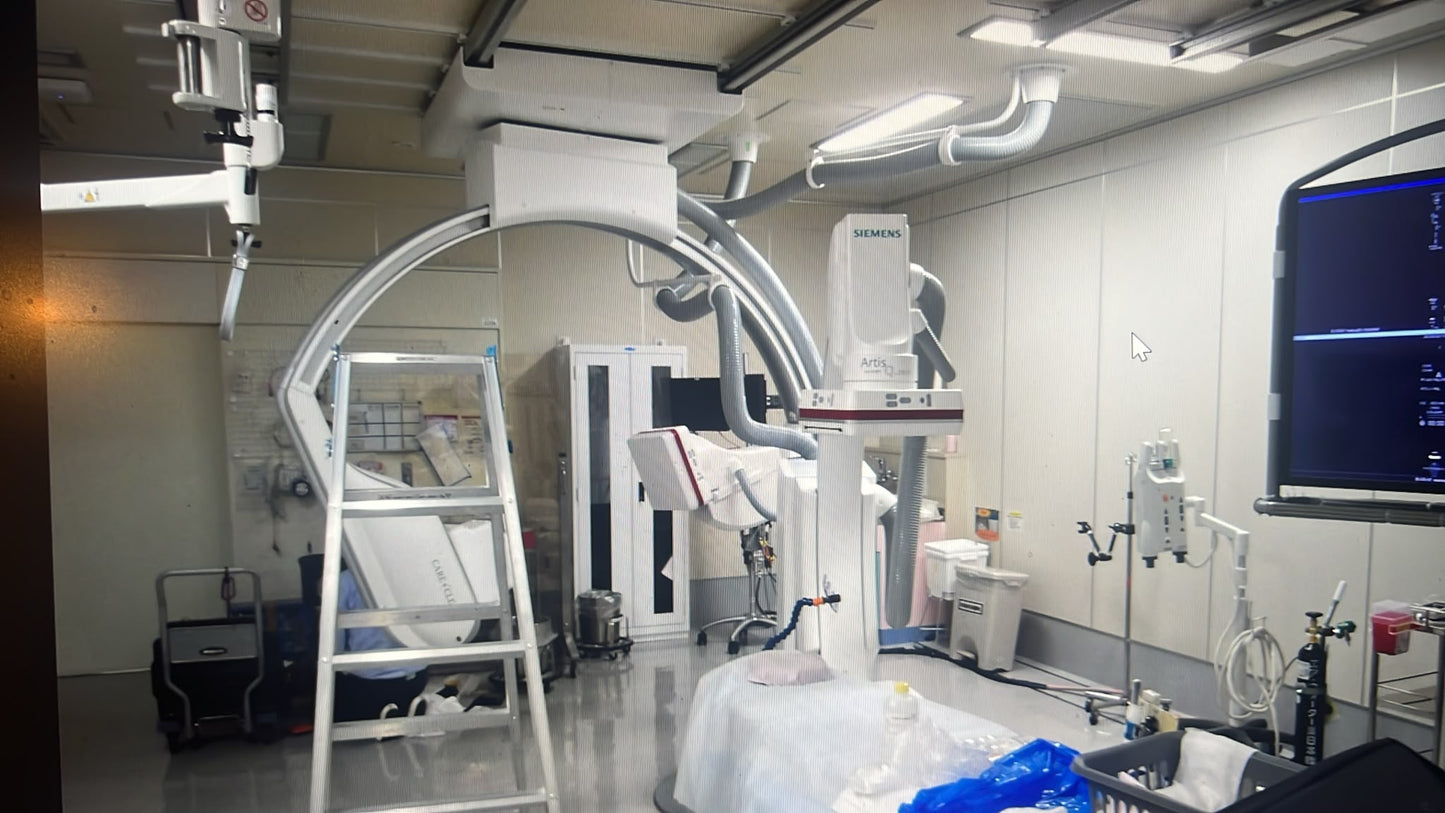

The biplane configuration utilizes two independent imaging planes, typically including a floor-mounted and ceiling-mounted imaging system.

This configuration allows physicians to obtain simultaneous or sequential views from different projections, improving visualization during complex interventions.

Biplane angiography is particularly beneficial for:

• Neurovascular procedures
• Cardiac interventions
• Complex vascular procedures
• Electrophysiology
• Structural heart interventions
• Pediatric cardiovascular procedures
• Interventional radiology

The ARTIS Q.zen Biplane provides extensive patient coverage and excellent access around the patient table for demanding interventional procedures.

Advanced Siemens Q.zen Technology

Crystalline Silicon Detector Technology

One of the defining technologies of the ARTIS Q.zen platform is its advanced crystalline silicon detector technology.

This detector technology is designed to:

• Reduce electronic noise
• Increase signal-to-noise performance
• Support high-sensitivity imaging
• Enable ultra-low-dose fluoroscopy
• Improve visualization during long and complex procedures

According to Siemens, ARTIS Q.zen technology can support fluoroscopic imaging at extremely low detector dose levels while maintaining visibility of critical anatomy and devices.

GIGALIX X-Ray Tube Technology

The ARTIS Q.zen platform incorporates Siemens' high-performance GIGALIX X-ray tube technology, designed to provide:

• High contrast resolution
• Excellent performance at steep angulations
• Improved visualization of fine anatomical details
• High-performance imaging for larger patients
• Advanced pulsed fluoroscopy

Siemens also incorporates CLEARpulse technology to support sharp imaging while optimizing radiation dose.

Clinical Applications

The Siemens ARTIS Q.zen Biplane is designed for a broad range of advanced interventional procedures.

Cardiac & Cath Lab Applications

• Coronary angiography
• Cardiac catheterization
• Percutaneous coronary interventions (PCI)
• Structural heart procedures
• Electrophysiology procedures
• Pacemaker and cardiac device implantation
• Complex cardiovascular interventions

Neurovascular Applications

• Cerebral angiography
• Stroke intervention
• Aneurysm treatment
• AVM procedures
• Neurovascular embolization
• Intracranial interventions

Vascular & Angiography Applications

• Peripheral angiography
• Endovascular interventions
• Embolization procedures
• Aortic interventions
• Peripheral vascular procedures
• Complex vascular imaging

Interventional Radiology

• Image-guided interventions
• Embolization
• Biopsy procedures
• Drainage procedures
• Oncology interventions

Hybrid Operating Room Applications

The ARTIS Q.zen platform can support advanced image-guided procedures in hybrid surgical environments, combining high-quality angiographic imaging with surgical access.

Biplane System Configuration

The ARTIS Q.zen Biplane configuration generally includes:

• Floor-mounted imaging plane
• Ceiling-mounted imaging plane
• Two X-ray tubes
• Two detector systems
• Motorized patient table
• Advanced imaging workstation
• Control room workstation
• Fluoroscopy and acquisition controls
• Interventional imaging software

Actual installed options and software packages may vary by individual system configuration.

Benefits of Biplane Angiography

Compared with single-plane angiography systems, a biplane system can provide important advantages during selected procedures:

• Simultaneous imaging from multiple angles
• Reduced need for repositioning between projections
• Improved visualization of complex anatomy
• Efficient workflow during neurovascular interventions
• Enhanced guidance during complex catheter-based procedures
• Potential reduction in contrast use and procedure time depending on the clinical application

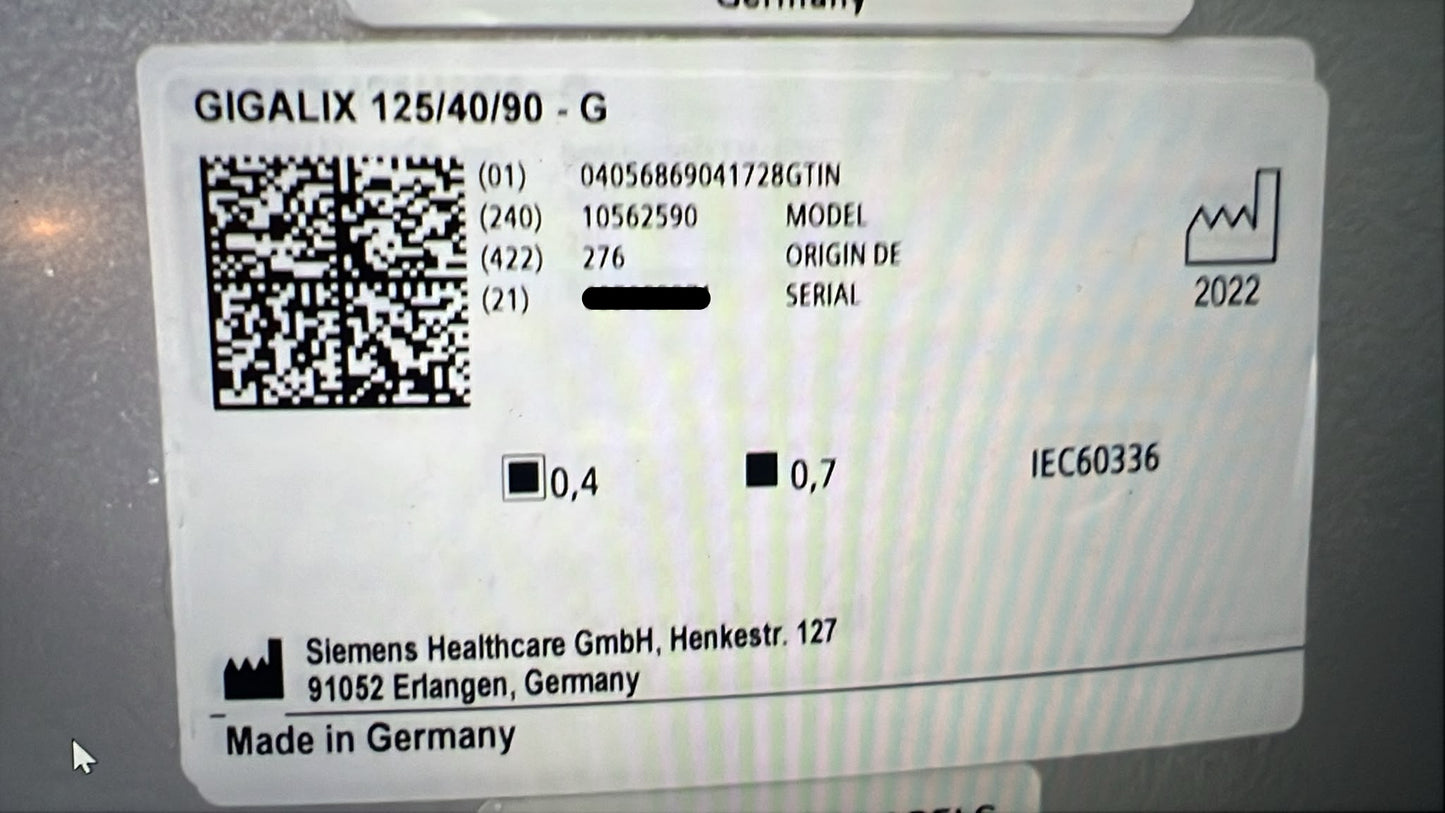

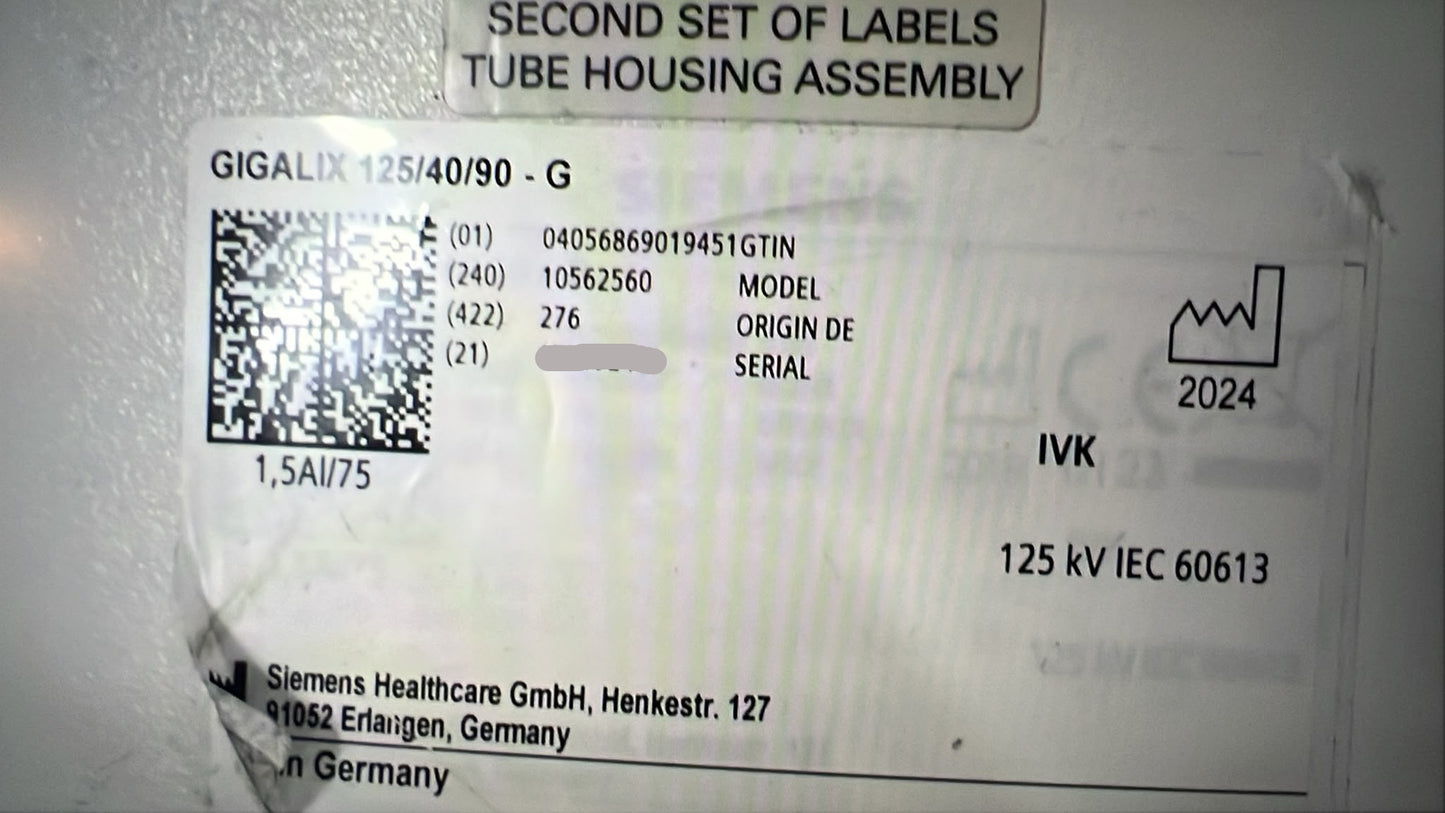

Updated X-Ray Tubes

This system includes two newer X-ray tubes:

• 2022 Tube
• 2024 Tube

The updated tubes provide a significant advantage when evaluating the remaining service life and value of a pre-owned interventional angiography system.

Ideal For

• Hospitals
• Cardiac Catheterization Labs
• Cath Labs
• Angiography Labs
• Angio Suites
• Neurovascular Centers
• Interventional Radiology Departments
• Cardiovascular Centers
• Hybrid Operating Rooms
• Academic Medical Centers
• Specialty Interventional Centers

Why Choose the Siemens ARTIS Q.zen Biplane?

The Siemens ARTIS Q.zen Biplane represents a high-end solution for facilities requiring advanced interventional imaging. Its dual-plane configuration, ultra-low-dose technology, advanced detector design, and powerful X-ray generation make it suitable for some of the most demanding cardiac, vascular, and neurovascular procedures.

Key Advantages:

• Premium Siemens interventional imaging platform
• Biplane angiography capability
• Advanced Cath Lab and Angio Lab applications
• Excellent fluoroscopy performance
• Ultra-low-dose imaging technology
• High-sensitivity detector technology
• Advanced cardiac and vascular imaging
• Suitable for neurovascular interventions
• Excellent patient access
• Updated X-ray tubes from 2022 and 2024
• Cost-effective alternative to purchasing a new biplane angiography system

Fully working condition.
