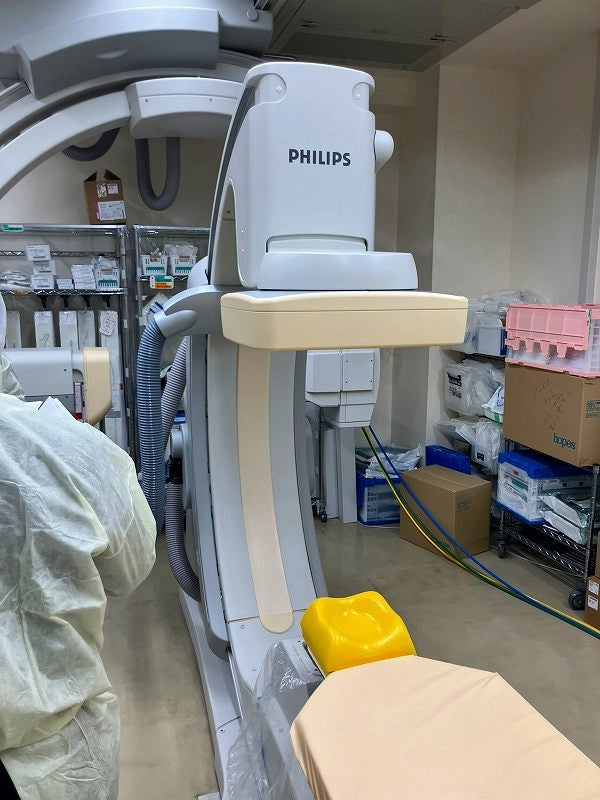

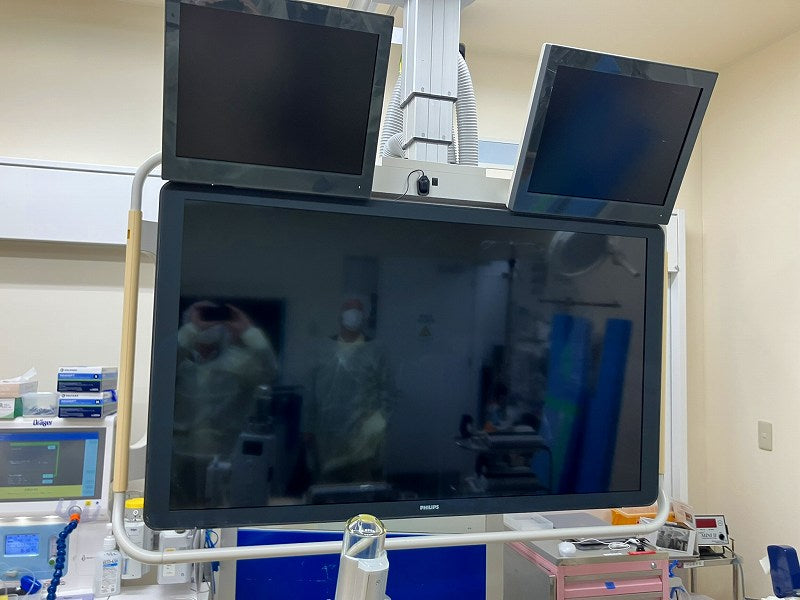

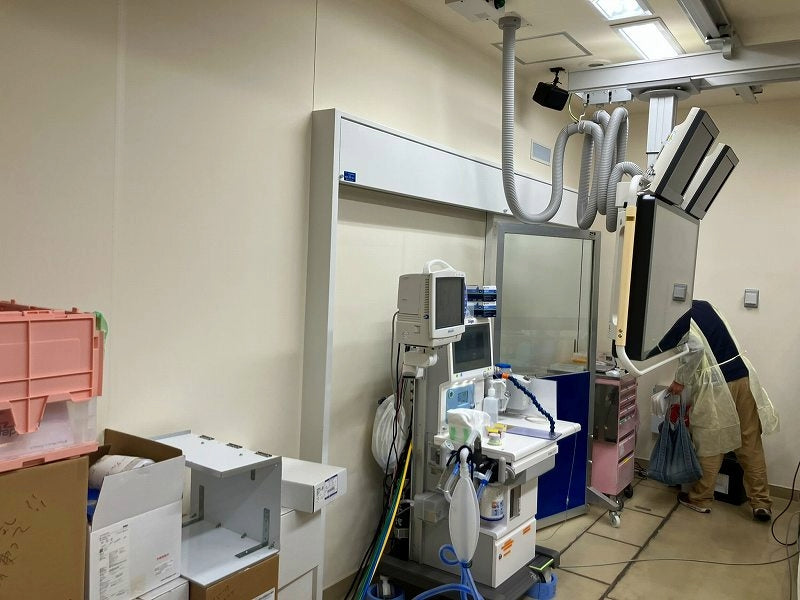

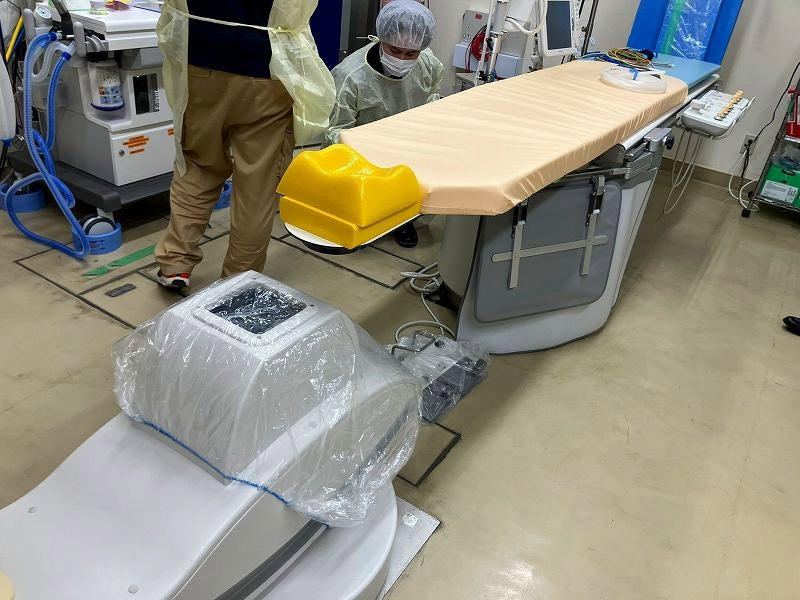

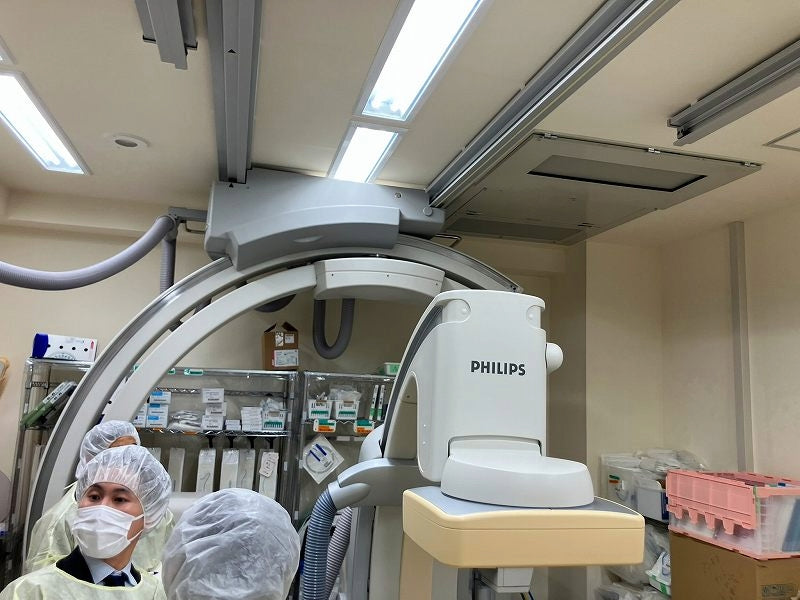

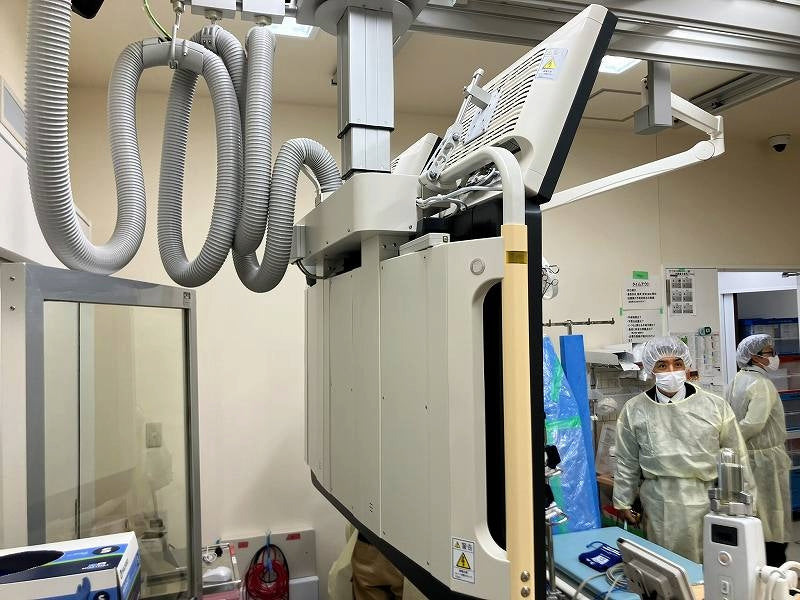

Philips Allura Xper FD20/10 Biplane Cath Lab (2015)

The Philips Allura Xper FD20/10 biplane catheterization laboratory provides elite, multi-angle imaging performance for complex interventional cardiology, pediatric cardiology, electrophysiology, and neurovascular procedures.

Featuring a dual-detector configuration—a large-format 20-inch (30x40 cm) detector on the frontal plane and a compact 10-inch (20x20 cm) detector on the lateral plane—this system offers full-body coverage alongside flexible positioning. Equipped with a high-capacity Philips MRC 200 0407 X-ray tube assembly, the system balances high-resolution visualization with optimized workflow efficiency and radiation protection.

Key Features & Benefits

  • Dual-Detector Configuration: Includes a 20" flat-panel detector for broad anatomical coverage (body/vascular) and a 10" flat-panel detector optimized for high-resolution lateral views and steep angles (neuro/cardiac).

  • High-Performance Tube Assembly: Powered by the Philips MRC 200 0407 X-ray tube system with high heat load capability, designed for heavy clinical workloads and rapid sequential exposures.

  • 3D Rotational Angiography: Simultaneous biplane acquisition provides detailed, 3D anatomical reconstructions with reduced contrast medium and lower total radiation dose.

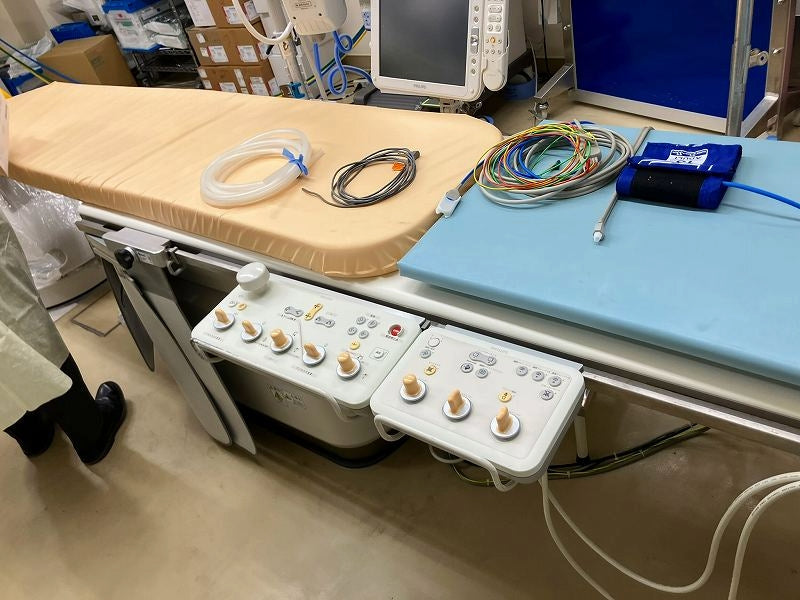

  • Xper Workflow Integration: Table-side controls and personalized Xper settings allow clinicians to manage system parameters, imaging modes, and patient data without leaving the examination zone.

  • DoseWise System: Features Philips' advanced dose-management technologies, including live fluoroscopy holding, spectral filtration, and customizable radiation dose profiles.

  • Philips ClarityIQ Technology: Equipped with native AlluraClarity imaging architecture, achieving up to 50%–73% radiation dose reduction (depending on clinical application) while maintaining superior, high-definition image quality.

  • High-Power 100 kW Generator: Features a heavy-duty 100 kW high-frequency X-ray generator (150 kVA power input), ensuring maximum beam penetration and crystal-clear visualization in high-BMI patients.

  • Real-time Pixel Shift & Motion Compensation: Advanced Clarity IQ processing automatically corrects for patient movement and reduces artifacts on live DSA fluoroscopy.

Technical Specifications

Feature Specification
Manufacturer Philips
Model Allura Clarity / Allura Xper FD20/10
Year of Manufacture 2015
Configuration Biplane (Ceiling & Floor-mounted gantries)
Image Processing Suite Philips ClarityIQ / AlluraClarity Platform
Frontal Detector 20-inch dynamic flat-panel detector (30 x 40 cm)
Lateral Detector 10-inch dynamic flat-panel detector (20 x 20 cm)
X-Ray Tube Model MRC 200 0407 (REF: 9890 000 86491)
Tube Housing Assembly MRC 200 0407 ROT-GS 1004 (REF: 9890 000 86501)
Generator Power Output 100 kW High Frequency (150 kVA Input)
Focal Spot Sizes 0.4 / 0.7 mm & 0.5 / 0.8 mm
Core Applications Neurovascular, Interventional Cardiology, Pediatric Cardiology, Endovascular Surgery

Ideal Clinical Applications

  • Neurointerventions: Dual-plane visualization enables precise navigation of complex intracranial vasculature, aneurysms, and arteriovenous malformations (AVMs).

  • Pediatric & Structural Heart: Reduces procedure time and contrast volume through simultaneous two-plane imaging.

  • Comprehensive Vascular Imaging: The large 20" frontal panel covers extensive peripheral vascular fields, while the 10" lateral panel provides detailed targeted views.

Fully working condition.
