IDC Xplorer 1590 Digital Rad Room 2006

IDC Xplorer 1590 Digital Rad Room 2006

DESCRIPTION

Features

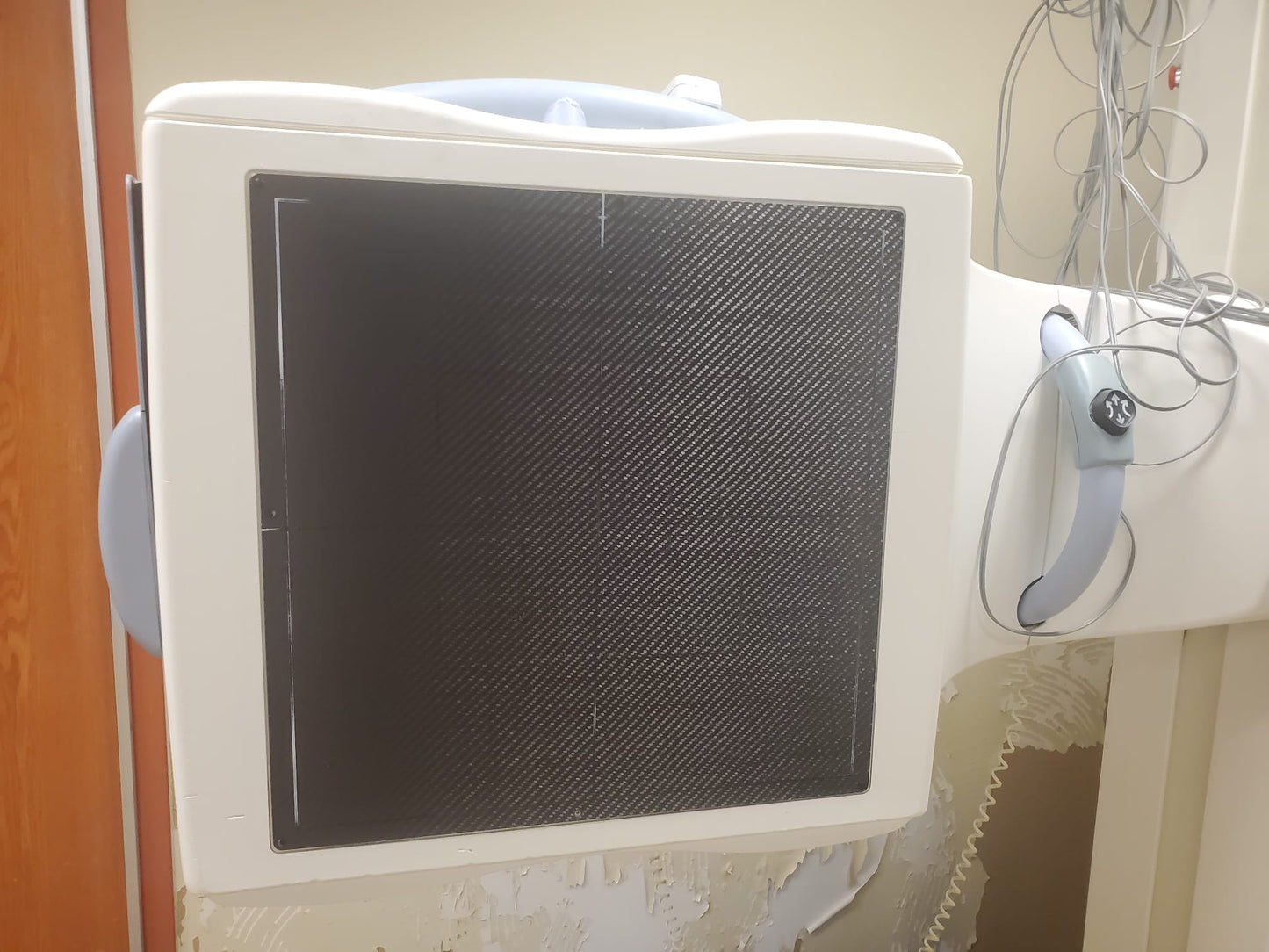

X4C IMAGING DETECTOR SPECIFICATIONS

  • Detector Array: Full field, single VHD CCD
  • Active Image Size:  43 cm x 43 cm (17” x 17”)
  • Imaging Pixels:  4,096 x 4,096 (16 Megapixel)
  • Pixel Size:  108 microns
  • Nyquist Resolution: 4.6 lp/mm
  • Bit Depth: 14 bit capture
  • Fill Factor: 100%
  • Preview Image: Approximately 6 seconds
  • Processed Image Display: Approximately 10 seconds
  • Imaging Detector Weight: 75 kg (165 lb)

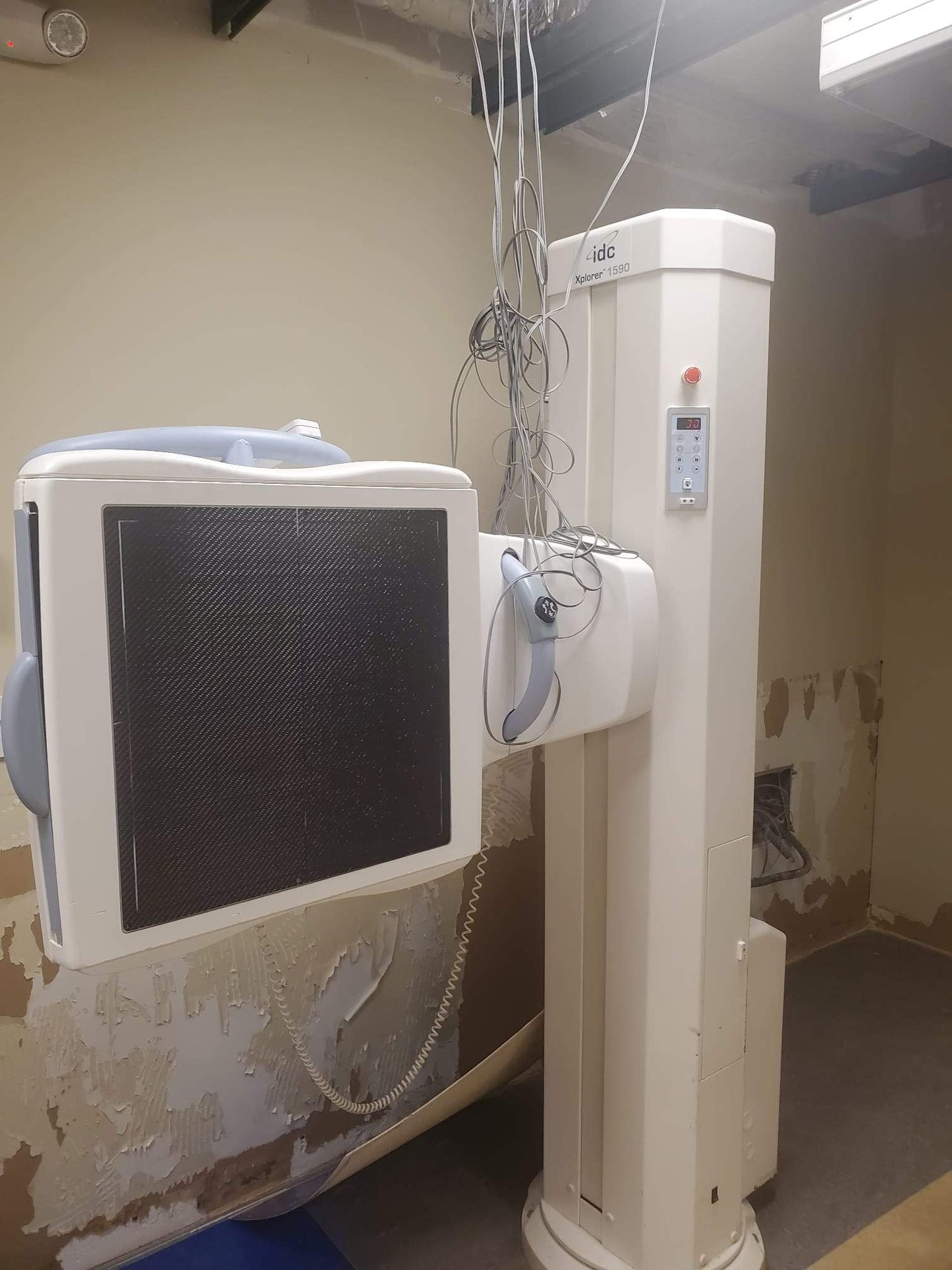

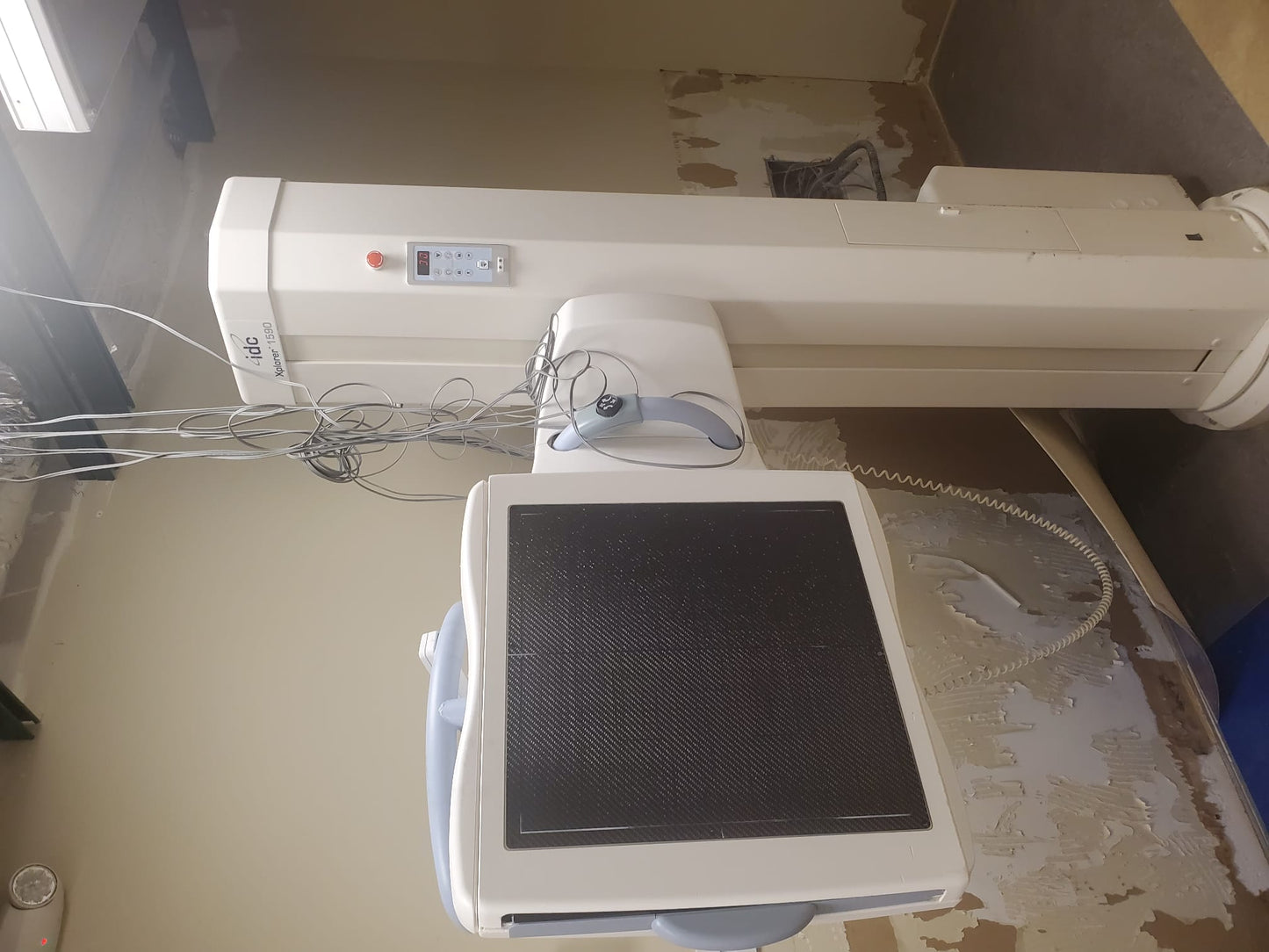

STAND FUNCTION SPECIFICATIONS

  •  Vertical travel (motorized): 34 cm (13.5”) to 156 cm (61”)
  • (minimum to maximum height) at the centre of the imaging area
  • Horizontal swing travel (manual):  180°
  • Detector head rotation (motorized) 0 - 90° (left or right handed)

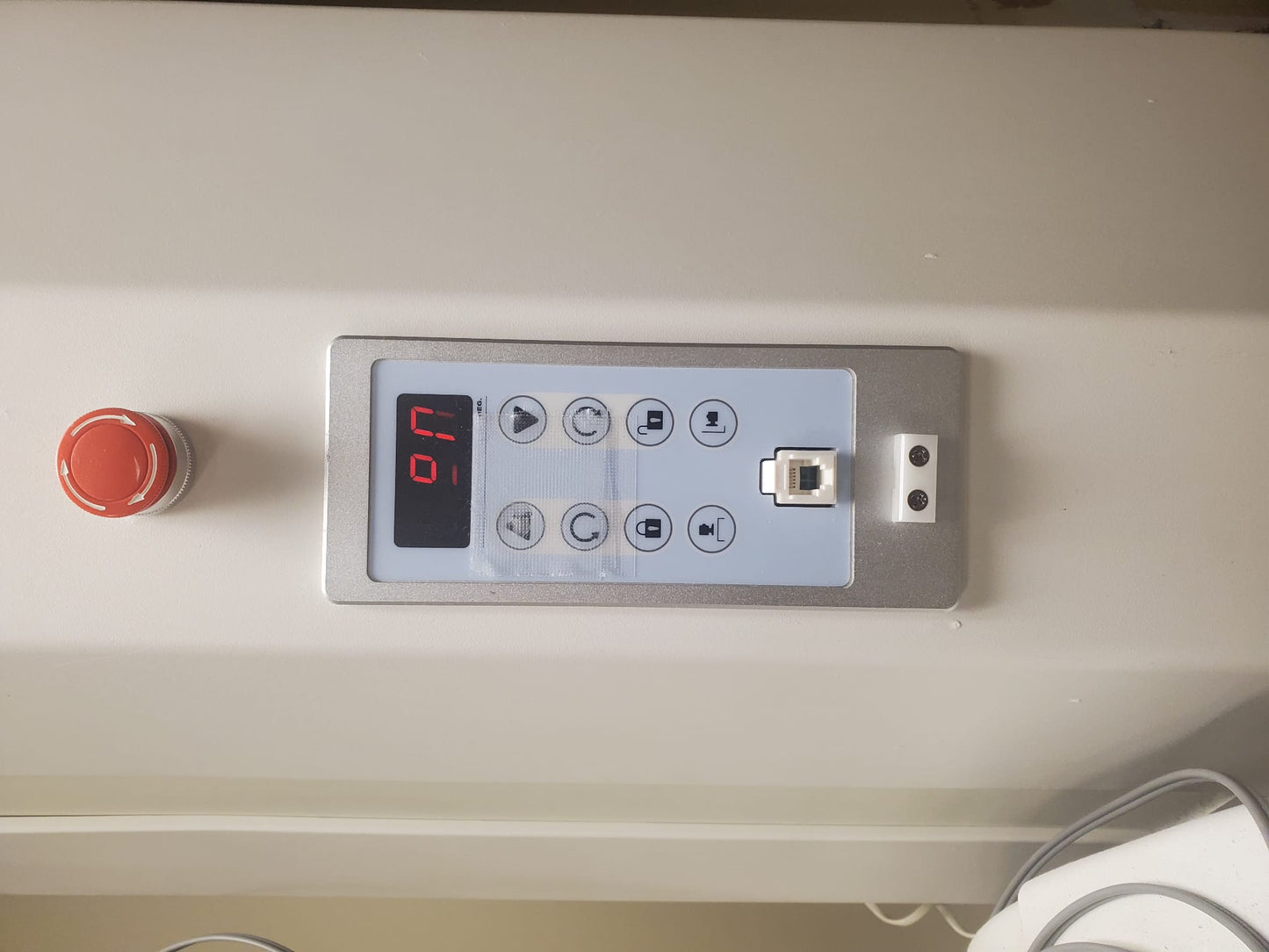

  • Operator Controls Remote control or manual
  • switches on imaging detector
  • Dimensions (L x W x H) 48 x 48 x 201 cm (19 x 19 x 83”)
  • Vertical Stand Weight 340 kg (748 lb)


POWER REQUIREMENTS

  • 1590 Stand Dedicated 240V, 15A, 50/60Hz
  • Technologist Workstation 110 – 250V, 10A, 50/60H

    • $ 24,900.00
    • $ 44,990.00
