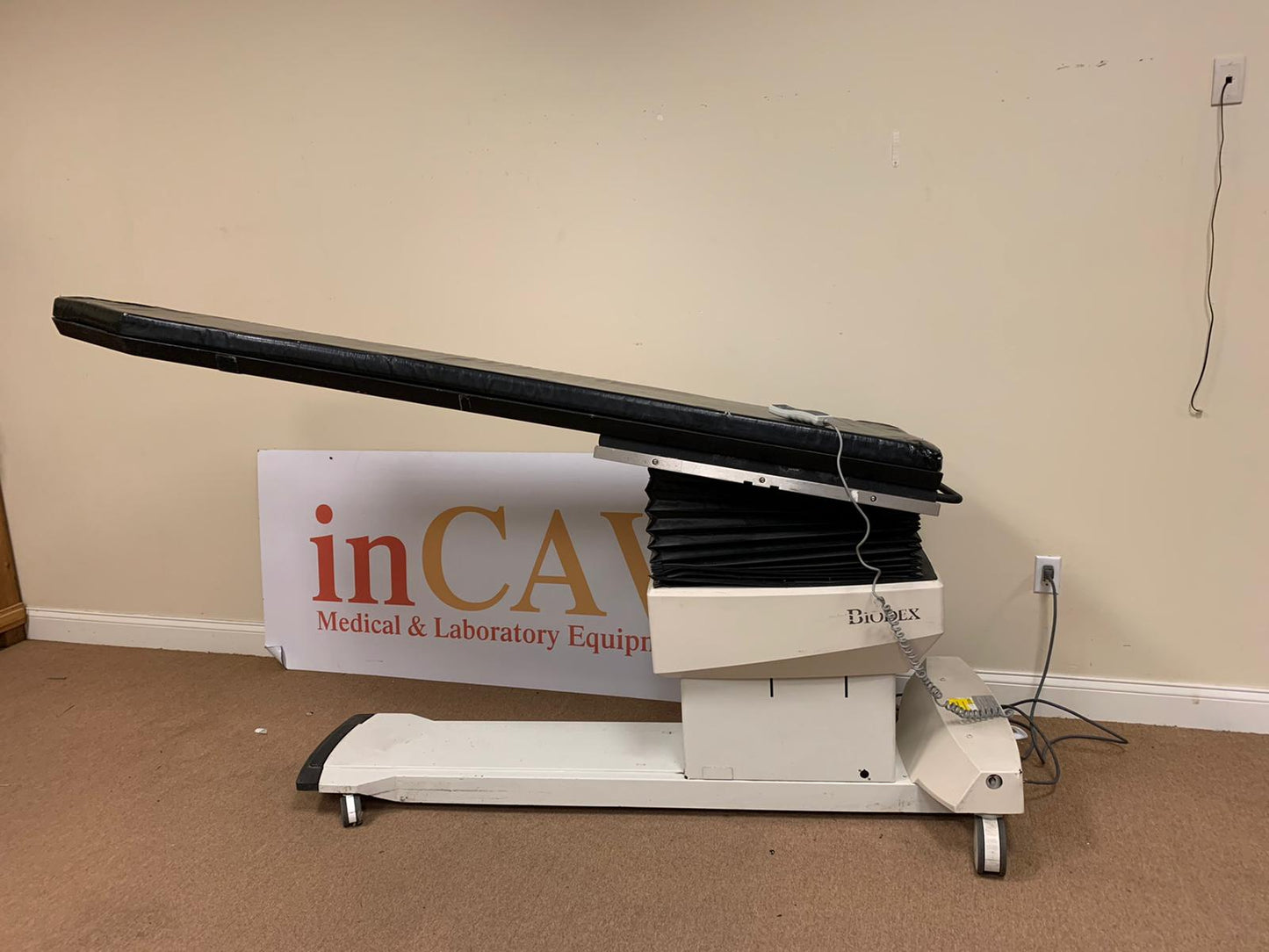

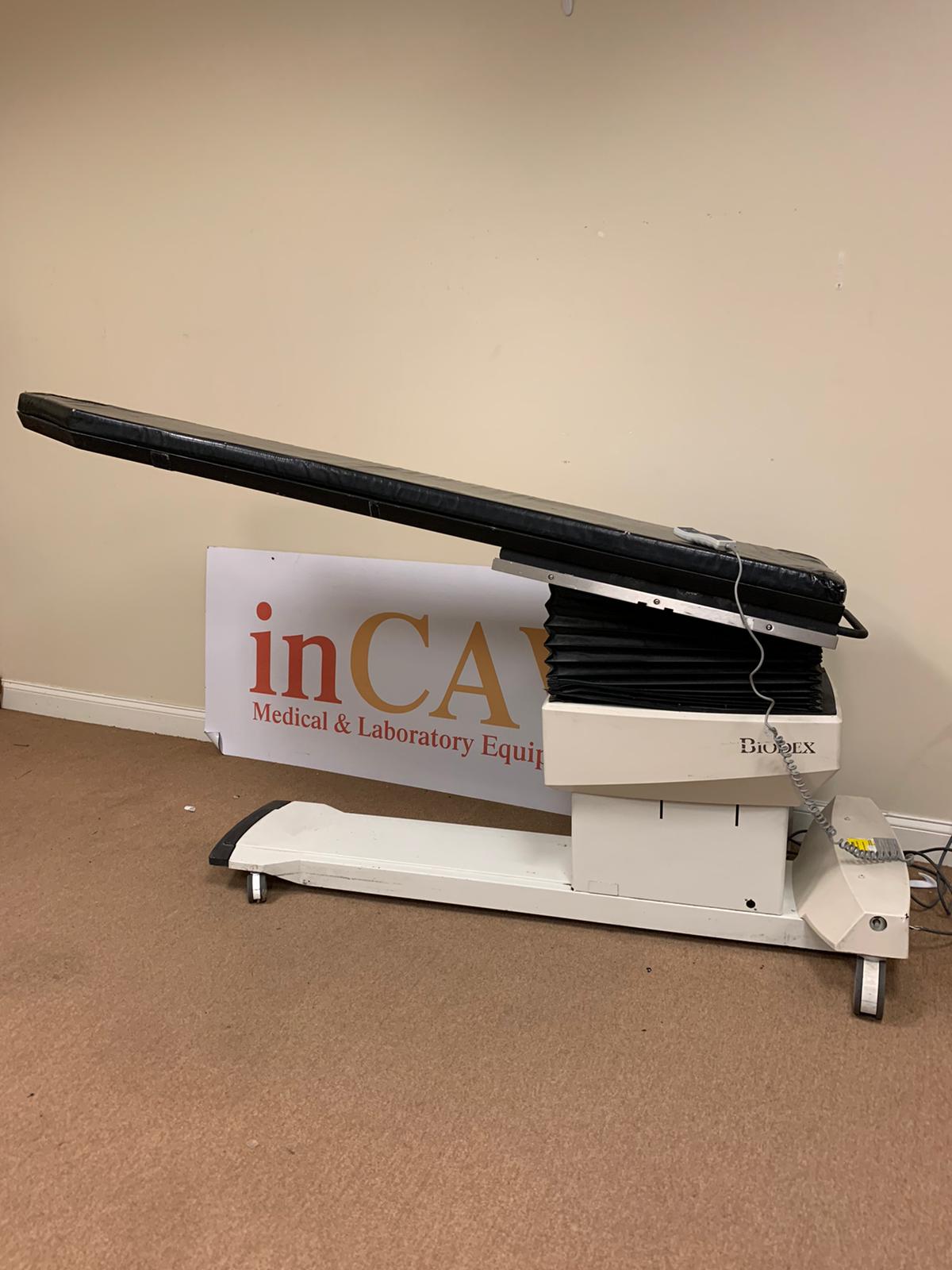

BIODEX Pain Management C-arm table Contour Design

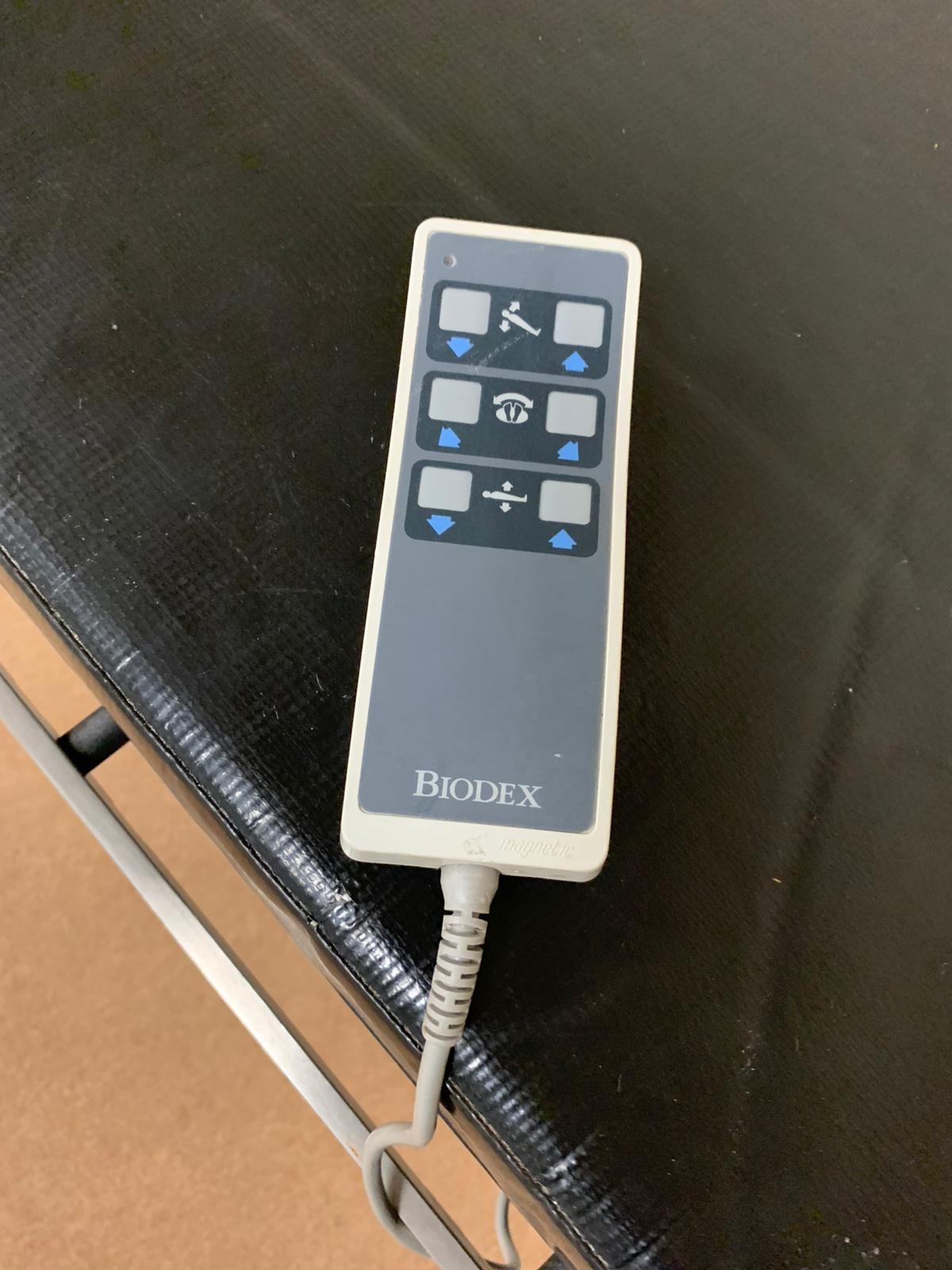

  • Hand Switch

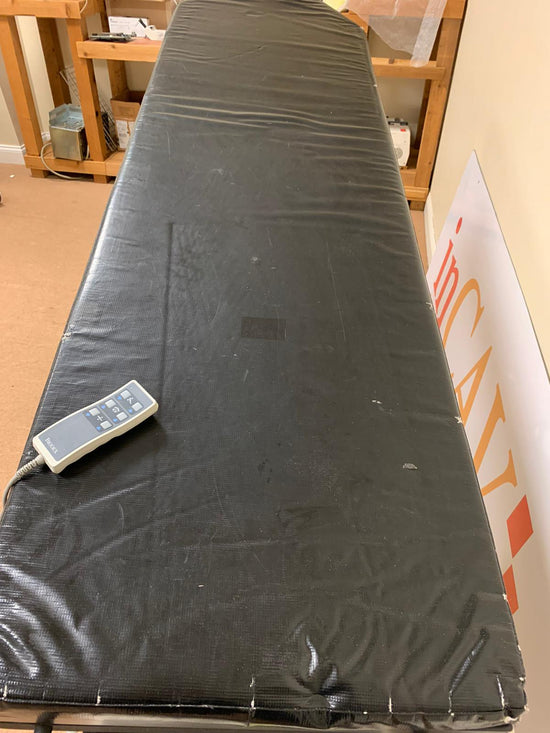

  • Used mattres Pad

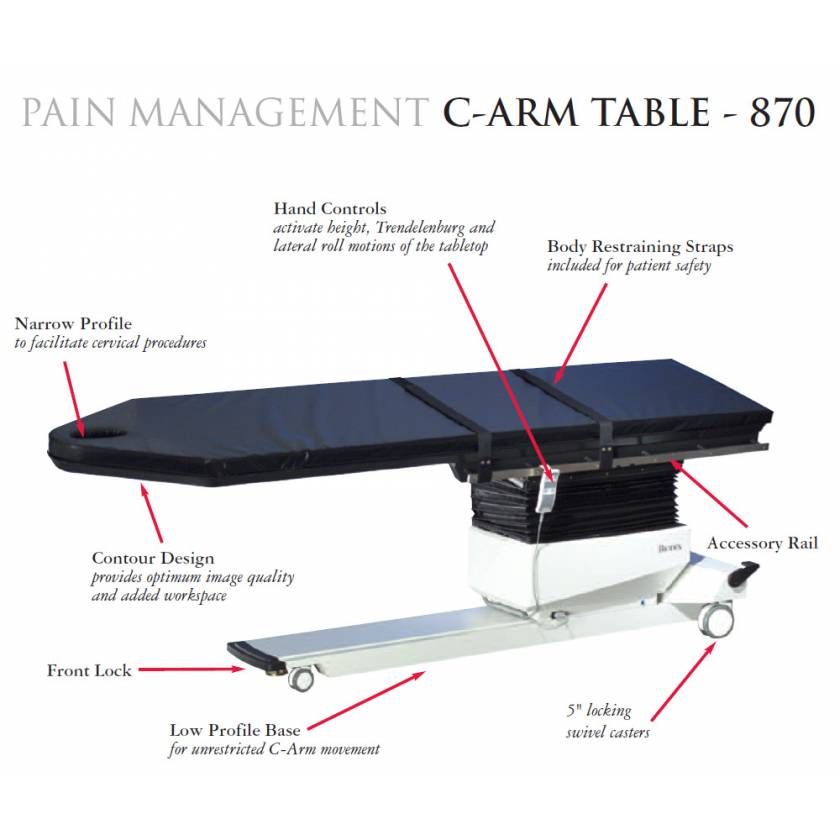

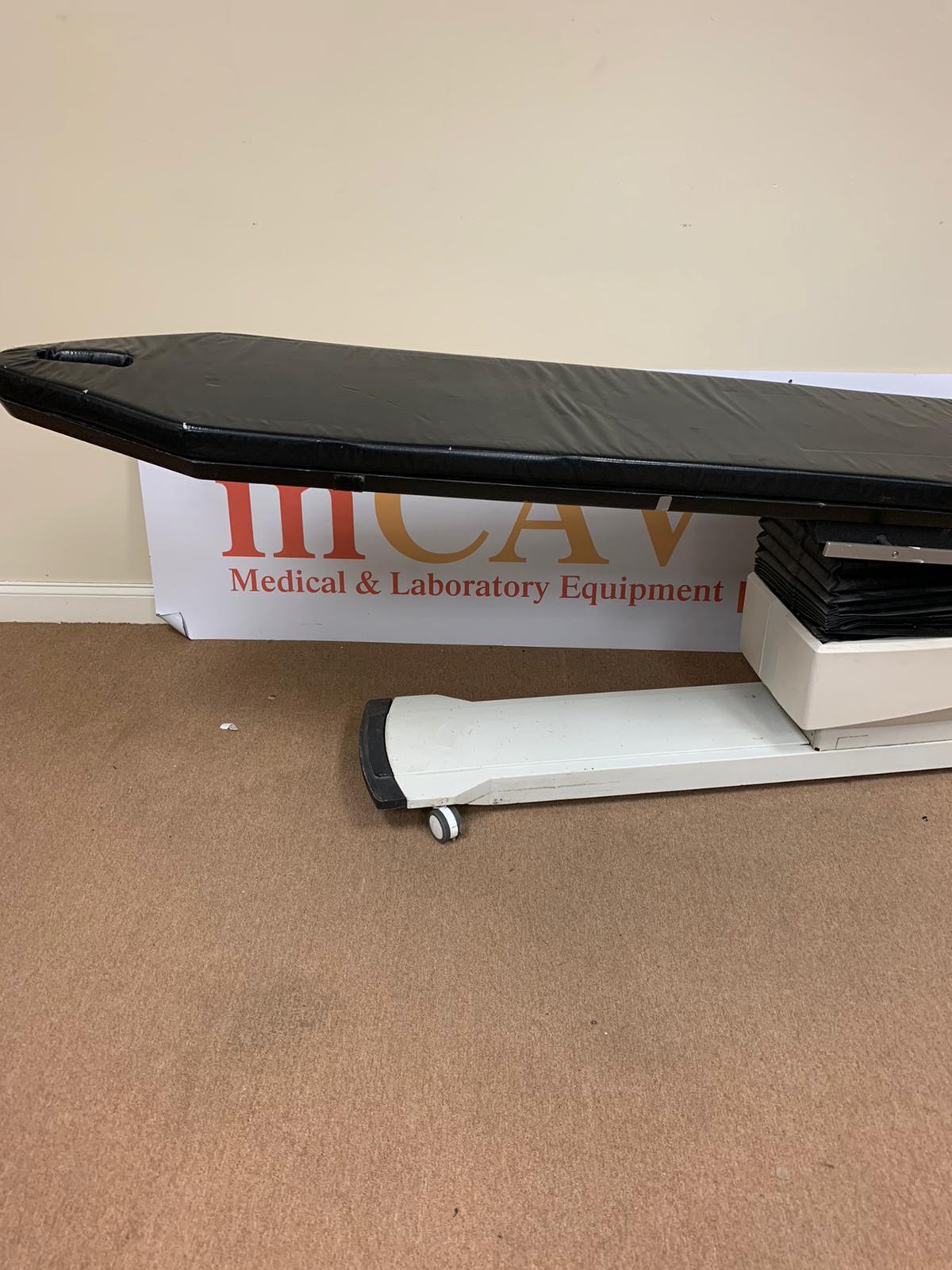

Biodex Pain Management C-Arm Table with Contoured Tabletop is ideal for pain care applications with its large radiolucent area, motorized actuation of height, lateral roll, and Trendelenburg motions. Fully accommodates portable or ceiling-suspended C-Arm positioning for the closest possible access to the cervical spine. Functional design allows clinicians to achieve optimum image resolution and provides reduced radiation exposure. Added workspace at the headend maintains the narrowness required for cervical procedures.


  • Dimensions: 93" L x 26" W with OR accessory rails
  • Tabletop: 90" L x 24" W

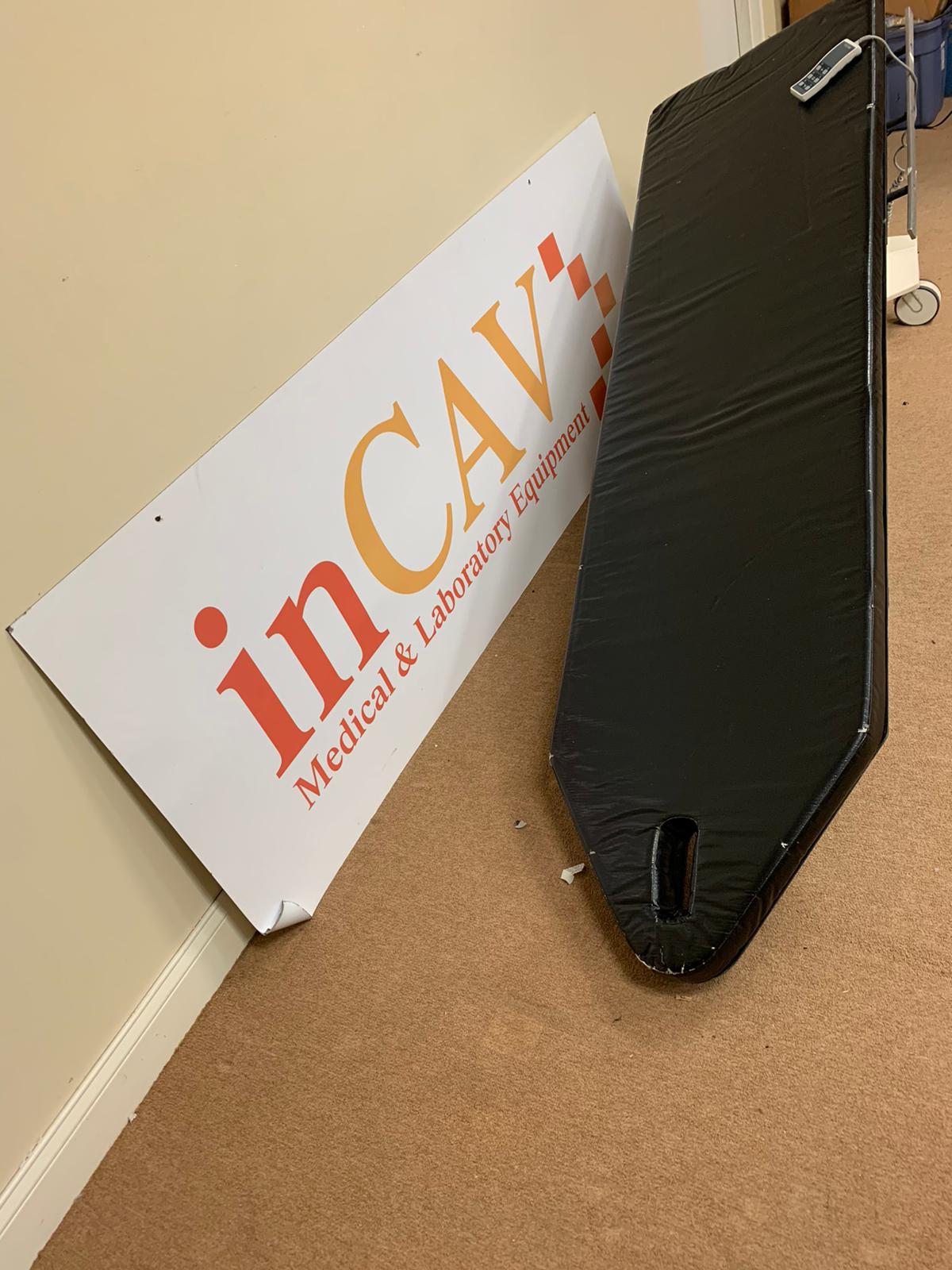

  • Face Cutout Area: Approximately 7" x 2"
  • Radiolucent Area: 60" L x 24" W unobstructed head to accessory rail - 4" L x 17.5" W additional, between accessory rails
  • Radiolucent Area, Total Length: 64" L
  • Tabletop Material: Carbon fiber with integral head section
  • Mattress: Seamless, 2" thick
  • Attenuation: Tabletop: 0.7 mm Aluminum equivalence - Mattress: 0.5 mm Aluminum equivalence

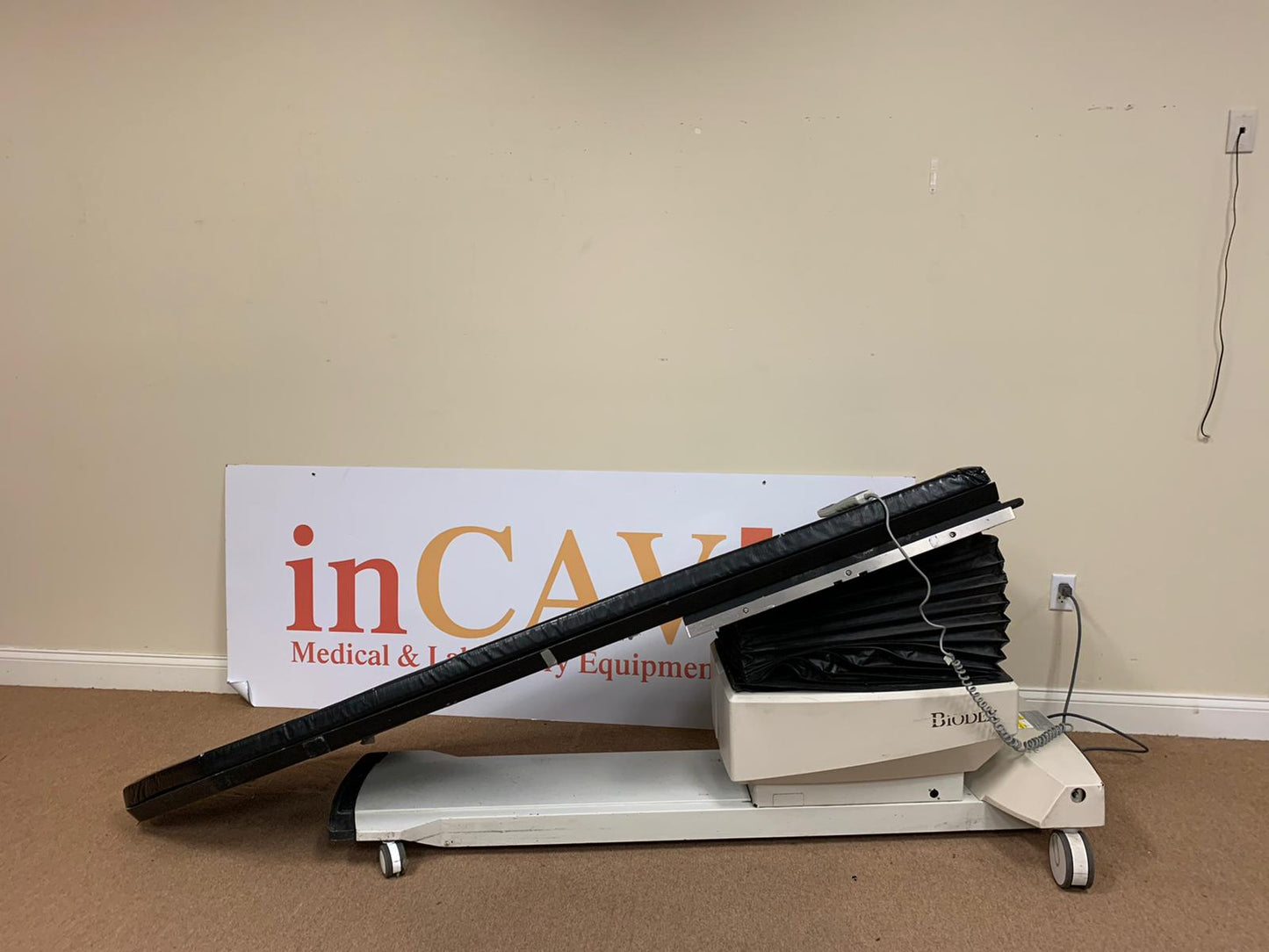

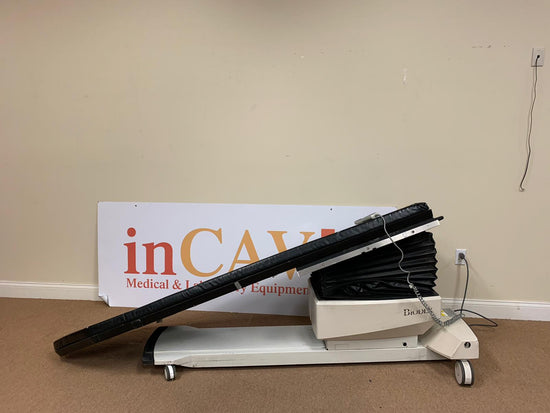

  • Motions: Height Adjustable: 30" to 40" - Trendelenburg: 0° to 20° - Reverse Trendelenburg: 0° to 20° - Lateral Roll: 0° to 20°

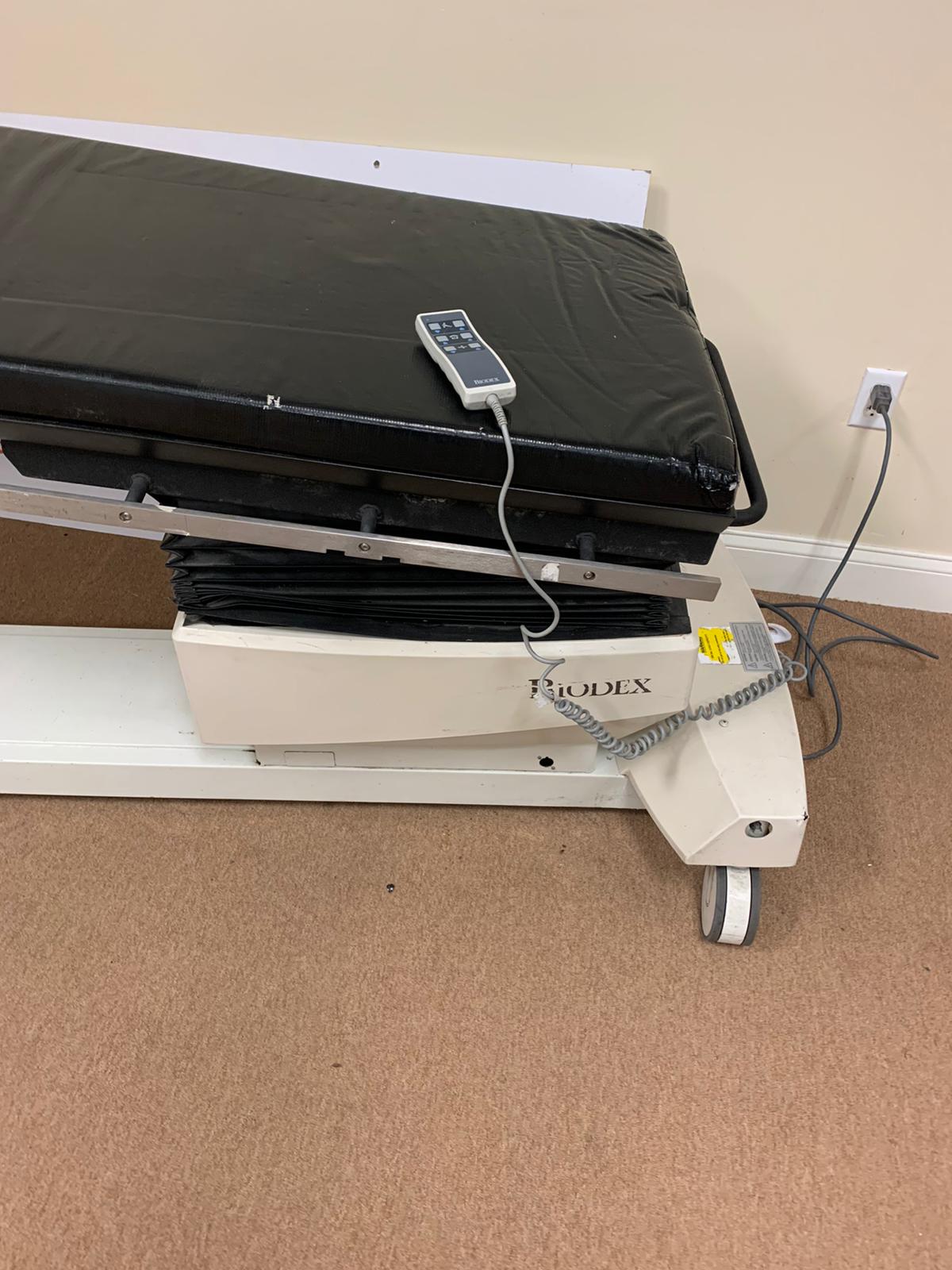

  • Hand Control: activates height, lateral roll and Trendelenburg motions
  • Optional Foot Control: activates height, lateral roll and Trendelenburg motions
  • Wheels: Head End 3" swivel casters, integral locking system on base - Foot End 5" swivel casters with central locking
  • Accessory Rails: Standard OR accessory rails 30" x 1.12" x .375" mounted near foot end of table
  • Patient Restraints: Three body straps
  • Finish: Powder coat
  • Patient Capacity: 500 lb; weight tested to four times the patient load rating
  • Lift Capacity: May vary between 460 lb - 500 lb based on line voltage
  • Power: 115 VAC
  • Certifications: ETL and cETL listed to UL-2601-1, CAN/CSA C22.2 No.: 601-1-M90, EN 60601-1, IEC 60601-1-2:2001-09
