GE OEC 9600 C-ARM Pain Management and Orthopedics C-arm

  • $ 18,900.00
  • $ 19,900.00

GE OEC 9600 C-Arm

The GE OEC 9600 was the first system to introduce digital CCD Camera to the marketplace.

Condition:
- Reurbished
- NEW Batteries

Product Specifications

X-Ray System:

Generator:
  •  High frequency
  • 4.0 kW full-wave
  • Up to 120 kVp
  • Up to 75 mA for radiographic film exposures
  • Continuous fluoro boost mode up to 12 mA (optional)
  • Pulsed fluoro mode
  • Pulsed fluorography mode up to 40 mA (optional)
  • Full power from outlet:
    – 50 Hz or 60 Hz
    – 100V-15A to 240V-8A
  • Patented energy buffer design
X-Ray Tube:
  •  Rotating anode X-ray tube
  • Focal spots: 0.3 mm and 0.6 mm
  • Anode heat capacity: 300,000 HU
  • Anode cooling rate: 60,000 HU/min
  • Housing heat capacity: 1,600,000 HU
  • Anode diameter: 3.1 in.
  • Anode angle:
    – 8.5 in. (9-inch Image Intensifier)
    – 10 in. (12-inch Image Intensifier)
  •  X-ray tube cooling fan (Vascular, Neurovascular & Cardiac units)
Digital Image Rotation:
  • Digitally adjusts image display
  • Image update
    -Image rotation
    -Image reversal (side-to-side)
    -Image invert (top-to-bottom)
  • Image positioning without additional exposure
Collimator:
  • Iris collimation with dual opposing semi-transparent shutters allow elliptical, round and rectangular collimation
  • Iris and shutters are continuously variable

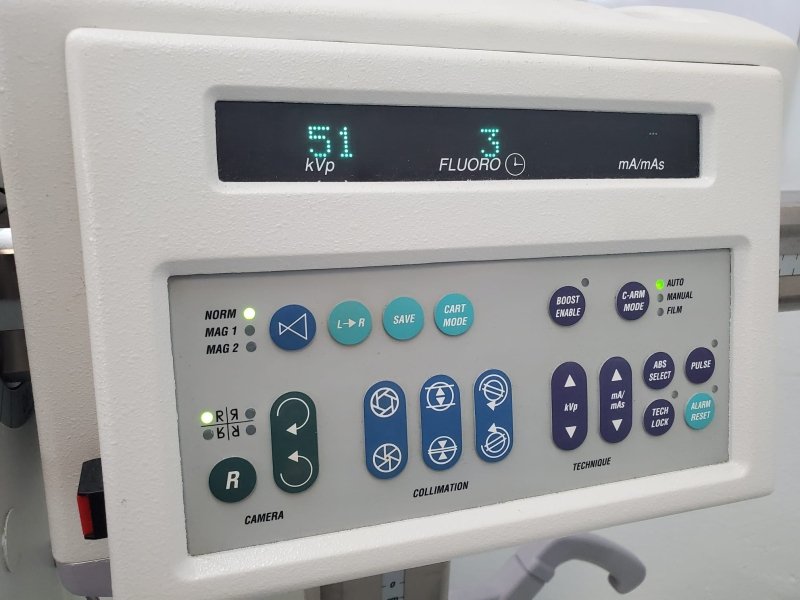

  • All functions remotely controlled from the C-Arm control panel
Fluoroscopy Mode:
  •  Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 5.0 mA normal mode
  • mA range: 1.0 – 12 mA continuous fluoro boost mode
  • Auto and manual modes
  • Continuous, one-shot or pulsed operation
  • ABS varies mA, kVp and came
Pulsed Fluoro Mode (optional):

Standard with the Expanded Surgical Platform (ESP) and higher configurations:

  • Focal spot: 0.3 mm
  • kVp range: 40 – 120 kVp
  • mA range: 0.2 – 40.0 mA
  • Pulse rate: 1, 2, 4, or 8 pulses per second
  • Pulse width: 30 or 50 milliseconds
  • Computer controlled ABS, mA, kVp and camera gain
Digital Spot Mode (optional):

Standard with the Expanded Surgical Platform (ESP) and higher configurations:

  • Enhanced digital fluorographic one shot with 12 mA boost
  • Automatically terminates exposure and stores enhanced image to storage archival disk
Radiographic Mode:
  • Focal spot: 0.3 mm or 0.6 mm
  • Focal spot automatically selected
  • 0.3 mm – mAs range: 1 – 100 mAs
  • 0.6 mm – mAs range: 110

Video Imaging System:

9″ Image Intensifier:
  •  Tri-mode 9/ 6/ 4.5 in. image intensifier
  • Minimum central resolution (at the monitor):
    – 9 in.: 1.4 lp/mm
    – 6 in.: 2.0 lp/mm
    – 4.5 in.: 2.4 lp/mm
  • DQE: 65% (typical)
Video Camera:
  • High resolution CCD camera
  • Full frame capture
  • 360° motorized rotation
  • On-screen orientation indicator (realtime feedback without fluoro)
  • Left-right image reversal
  • Top-bottom image reversal
  • Negative mode
  • Video signal: Standard RS 170A 60 Hz, 525 lines
  • Aspect ratio: 4:3
  •  Computer controlled features:
    – Gain
    – Blanking
    – Camera iris

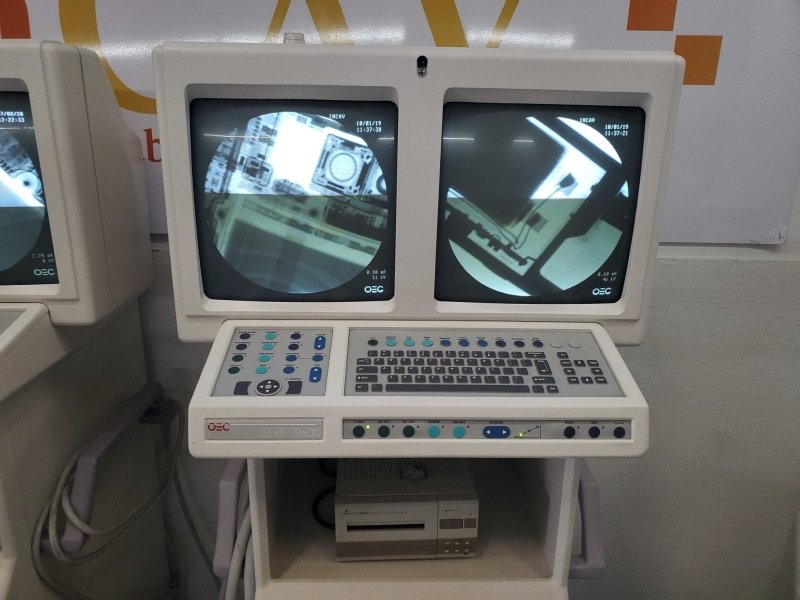

Video Display (OEM Factory):
  • Dual 16 in square, black etched, anti-glare, anti-static
  • 525 lines/frame – 512 pixels
  • Ambient room light sensor
  • Multi-LED X-ray “ON” indicator
  • Remote window/level controls
Video Display (Upgraded Retrofit Kit):
  • 32″ LED Lit LCD Display With Dual Screen Capabilities
  • Anti-glare, progressive full frame scan monitor
  • 2 Mega Pixel high-resolution output
  • Ambient room-light compensation

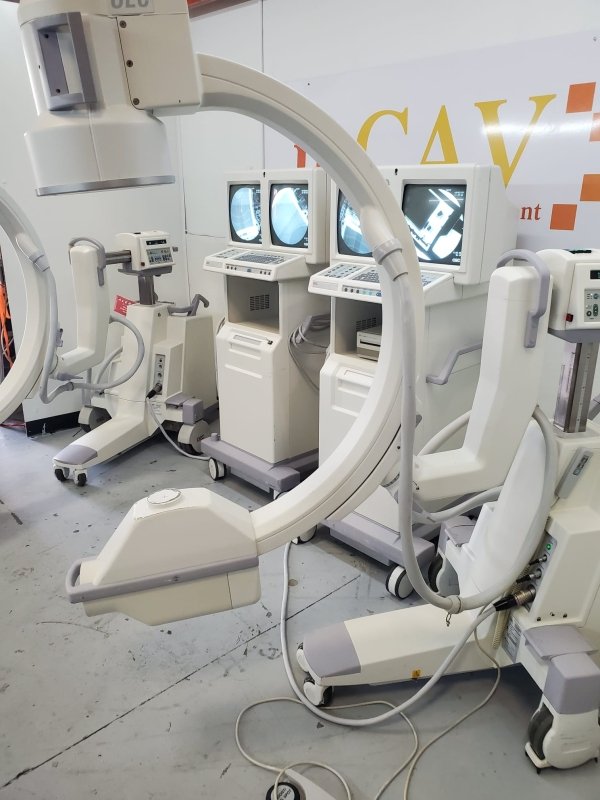

C-Arm Dimensions:
  • Height: 68 / 86 in (1734 / 2191 mm)
  • Width: 33 in (838 mm)
  • Length: 78 in (1994 mm)
  • Weight: 720 lbs.

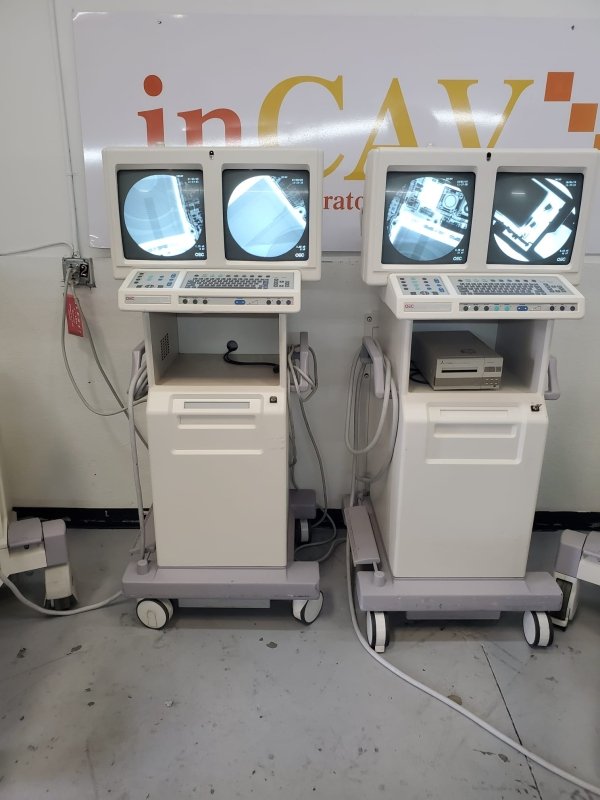

Workstation Dimensions:
  • Height: 64 in (1632 mm)
  • Width: 27 in (692 mm)
  • Depth: 27 in (692 mm)
  • Weight: 430 lbs.
