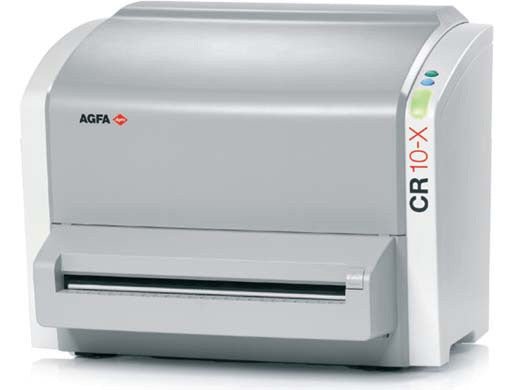

Agfa CR 10 X

Condition: Refurbished

SPECIFICATIONS

GENERAL Digitizer type

• Single cassette feed

• Throughput: Up to 44 plates/hour (depending on size)

Display

• LED Status Indicator

• Status and error messages on external PC monitor

Greyscale resolution

• Data acquisition: 20 bits/pixel

• Output to processor: 16 bits/pixel square root compressed

Dimensions and weight

• W x D x H: 580 x 700 x 471 mm

• Depth without cassette unit and extension: 380 mm

• Weight: 29 kg

Power

• Autoranging external power supply (24 V output)

• Input:

• 100 V - 240 V

• < 2 A • 50/60 Hz

• Fuse: Europe max 16 A; USA max 15 A

Minimum requirements

• CR MD1.0 GENERAL PLATE

• CR MD1.0 GENERAL CASSETTE

• CR MD1.0 CASSETTE ADAPTER 24 X 30

• CR MD1.0F GENERAL PLATE

• CR MD1.0F GENERAL CASSETTE

• CR DD1.0 VET PLATES

• CR DD1.0 VET CASSETTE

• NX

Environmental conditions

• In line with: IEC 721-3-3 (1997): class 3K2, with the following extension:

• Temperature: 15 - 35° C

Environmental effects

• Noise level: max. 65 dB (A)

• Heat dissipation: standby 30 W, max. 108 W

Mobile use

• In line with IEC721-3-3 (1997): 3K2 with the following restrictions:

• Temperature: +15° C to +35° C

• Humidity: 15 - 75 % RH (non-condensing)

• During transport with mobile kit: in line with IEC721-3-5: 5K1 and 5M3

Transport

• In line with: IEC 721-3-2 (1997): class 2K2, with the following restrictions: -25 to +55° C (-4 to 131° F)

Storage

• Packed device shall withstand the following mechanical conditions: IEC 721-3-1: class 1M2 and IEC 721-3-2(1993): class 2M3; including sea transport.

• In line with IEC721-3-1: class 1K4
